Customized Industrial Magnet: Pure Perma...
Pure permanent magnets, unlike electromagnets, are made from materials that reta...
Arc motor magnet pure permanent magnet is a motor magnet made of pure permanent magnet material. With its unique arc design, this magnet can more effectively generate and concentrate magnetic fields, improving the operating efficiency and performance of the motor. Pure permanent magnet materials have stable magnetism and high magnetic energy product, can continuously generate magnetic fields without external energy supply, and are suitable for various high-precision and high-efficiency motor applications.
Klasse |
Remanenz Induktion |
Koerzitivfeldstärke |
Intrinsische Koerzitivfeldstärke |
Maximal Energie Produkt |
Arbeitstemperatur |
Dichte |
|||||||||||||||||
Br | HcB | HcJ | (BH)max | Tw | ρ | ||||||||||||||||||
T | KGs | KA/m | KOe | KA/m | KOe | KJ/m³ | MGOe | ℃ | g/cm3 | ||||||||||||||
Allgemeiner Prozess | |||||||||||||||||||||||
N38 | 1.23-1.30 | 12.3-13.0 | ≥876 | ≥11 | ≥955 | ≥12 | 287-318 | 36-40 | ≤80 | ≥7.5 | |||||||||||||
N40 | 1.26-1.32 | 12.6-13.2 | ≥876 | ≥11 | ≥955 | ≥12 | 302-334 | 38-42 | ≤80 | ≥7.5 | |||||||||||||
N42 | 1.29-1.35 | 12.9-13.5 | ≥876 | ≥11 | ≥955 | ≥12 | 318-350 | 40-44 | ≤80 | ≥7.5 | |||||||||||||
N45 | 1.32-1.38 | 13.2-13.8 | ≥876 | ≥11 | ≥955 | ≥12 | 334-366 | 42-46 | ≤80 | ≥7.5 | |||||||||||||
N48 | 1.37-1.43 | 13.7-14.3 | ≥876 | ≥11 | ≥955 | ≥12 | 358-390 | 45-49 | ≤80 | ≥7.5 | |||||||||||||
N50 | 1.40-1.45 | 14.0-14.5 | ≥876 | ≥11 | ≥955 | ≥12 | 374-406 | 47-51 | ≤80 | ≥7.5 | |||||||||||||
N52 | 1.42-1.48 | 14.2-14.8 | ≥836 | ≥10.5 | ≥876 | ≥11 | 390-422 | 49-53 | ≤80 | ≥7.5 | |||||||||||||
N55 | 1.46-1.51 | 14.6-15.1 | ≥860 | ≥10.8 | ≥955 | ≥12 | 406-438 | 51-55 | ≤80 | ≥7.5 | |||||||||||||
N38M | 1.23-1.30 | 12.3-13.0 | ≥915 | ≥11.5 | ≥1114 | ≥14 | 287-318 | 36-40 | ≤100 | ≥7.5 | |||||||||||||
N40M | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1114 | ≥14 | 302-334 | 38-42 | ≤100 | ≥7.5 | |||||||||||||
N42M | 1.29-1.35 | 12.9-13.5 | ≥963 | ≥12.1 | ≥1114 | ≥14 | 318-350 | 40-44 | ≤100 | ≥7.5 | |||||||||||||
N45M | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1114 | ≥14 | 334-366 | 42-46 | ≤100 | ≥7.5 | |||||||||||||
N48M | 1.37-1.43 | 13.7-14.3 | ≥1019 | ≥12.8 | ≥1114 | ≥14 | 358-390 | 45-49 | ≤100 | ≥7.5 | |||||||||||||
N50M | 1.40-1.45 | 14.0-14.5 | ≥1043 | ≥13.1 | ≥1114 | ≥14 | 374-406 | 47-51 | ≤100 | ≥7.5 | |||||||||||||
N52M | 1.42-1.48 | 14.2-14.8 | ≥1059 | ≥13.3 | ≥1114 | ≥14 | 390-422 | 49-53 | ≤100 | ≥7.5 | |||||||||||||
N54M | 1.46-1.51 | 14.6-15.1 | ≥995 | ≥12.5 | ≥1035 | ≥13 | 406-438 | 51-55 | ≤100 | ≥7.5 | |||||||||||||
N35H | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥1353 | ≥17 | 263-295 | 33-37 | ≤120 | ≥7.5 | |||||||||||||
N38H | 1.23-1.30 | 12.3-13.0 | ≥915 | ≥11.5 | ≥1353 | ≥17 | 286-318 | 36-40 | ≤120 | ≥7.5 | |||||||||||||
N40H | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1353 | ≥17 | 302-334 | 38-42 | ≤120 | ≥7.5 | |||||||||||||
N42H | 1.29-1.35 | 12.9-13.5 | ≥963 | ≥12.1 | ≥1353 | ≥17 | 318-350 | 40-44 | ≤120 | ≥7.5 | |||||||||||||
N45H | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1353 | ≥17 | 334-366 | 42-46 | ≤120 | ≥7.5 | |||||||||||||
N48H | 1.37-1.43 | 13.7-14.3 | ≥1011 | ≥12.7 | ≥1353 | ≥17 | 358-390 | 45-49 | ≤120 | ≥7.5 | |||||||||||||
N50H | 1.40-1.45 | 14.0-14.5 | ≥1027 | ≥12.9 | ≥1353 | ≥17 | 374-406 | 47-51 | ≤120 | ≥7.5 | |||||||||||||
N52H | 1.42-1.48 | 14.2-14.8 | ≥1059 | ≥13.3 | ≥1353 | ≥17 | 390-422 | 49-53 | ≤120 | ≥7.5 | |||||||||||||
N33SH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥1592 | ≥20 | 247-279 | 31-35 | ≤150 | ≥7.5 | |||||||||||||
N35SH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-295 | 33-37 | ≤150 | ≥7.5 | |||||||||||||
N38SH | 1.23-1.29 | 12.3-12.9 | ≥915 | ≥11.5 | ≥1592 | ≥20 | 287-318 | 36-40 | ≤150 | ≥7.5 | |||||||||||||
N40SH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1592 | ≥20 | 302-334 | 38-42 | ≤150 | ≥7.5 | |||||||||||||
N42SH | 1.29-1.35 | 12.9-13.5 | ≥963 | ≥12.1 | ≥1592 | ≥20 | 318-350 | 40-44 | ≤150 | ≥7.5 | |||||||||||||
N45SH | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 334-366 | 42-46 | ≤150 | ≥7.5 | |||||||||||||
Fortsetzung folgt |
Klasse |
Remanenz Induktion |
Koerzitivfeldstärke |
Intrinsische Koerzitivfeldstärke |
Maximal Energie Produkt |
Arbeitstemperatur |
Dichte |
|||||||||||||||||||
Br |
HcB |
HcJ |
(BH)max |
Tw |
ρ |
||||||||||||||||||||
Klasse |
T |
KGs |
KA/m |
KOe |
KA/m |
KOe |
KJ/m³ |
MGOe |
℃ |
g/cm3 | |||||||||||||||
N48SH | 1.37-1.43 | 13.7-14.3 | ≥1011 | ≥12.7 | ≥1592 | ≥20 | 358-390 | 45-49 | ≤150 | ≥7.5 | |||||||||||||||
N50SH | 1.40-1.45 | 14.0-14.5 | ≥1027 | ≥12.9 | ≥1592 | ≥20 | 374-406 | 47-51 | ≤150 | ≥7.5 | |||||||||||||||
N52SH | 1.42-1.48 | 14.2-14.8 | ≥1035 | ≥13 | ≥1512 | ≥19 | 390-422 | 49-53 | ≤150 | ≥7.5 | |||||||||||||||
N30UH | 1.08-1.13 | 10.8-11.3 | ≥796 | ≥10.0 | ≥1990 | ≥25 | 223-255 | 28-31 | ≤180 | ≥7.5 | |||||||||||||||
N33UH | 1.14-1.18 | 11.4-11.8 | ≥852 | ≥10.5 | ≥1990 | ≥25 | 247-279 | 31-35 | ≤180 | ≥7.5 | |||||||||||||||
N35UH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥1990 | ≥25 | 263-295 | 33-37 | ≤180 | ≥7.5 | |||||||||||||||
N38UH | 1.23-1.29 | 12.3-12.9 | ≥915 | ≥11.5 | ≥1990 | ≥25 | 287-318 | 36-40 | ≤180 | ≥7.5 | |||||||||||||||
N40UH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1990 | ≥25 | 302-334 | 38-42 | ≤180 | ≥7.5 | |||||||||||||||
N42UH | 1.28-1.35 | 12.8-13.5 | ≥963 | ≥12.1 | ≥1990 | ≥25 | 310-350 | 39-44 | ≤180 | ≥7.5 | |||||||||||||||
N45UH | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1990 | ≥25 | 334-366 | 42-46 | ≤180 | ≥7.5 | |||||||||||||||
N48UH | 1.37-1.42 | 13.7-14.2 | ≥1019 | ≥12.8 | ≥1910 | ≥24 | 358-390 | 45-49 | ≤180 | ≥7.5 | |||||||||||||||
N30EH | 1.08-1.15 | 10.8-11.5 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-255 | 28-32 | ≤200 | ≥7.5 | |||||||||||||||
N33EH | 1.14-1.21 | 11.4-12.1 | ≥851 | ≥10.7 | ≥2388 | ≥30 | 247-279 | 31-35 | ≤200 | ≥7.5 | |||||||||||||||
N35EH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥2388 | ≥30 | 263-295 | 33-37 | ≤200 | ≥7.5 | |||||||||||||||
N38EH | 1.23-1.29 | 12.3-12.9 | ≥915 | ≥11.5 | ≥2388 | ≥30 | 287-318 | 36-40 | ≤200 | ≥7.5 | |||||||||||||||
N40EH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥2388 | ≥30 | 302-334 | 38-42 | ≤200 | ≥7.5 | |||||||||||||||
N42EH | 1.28-1.35 | 12.8-13.5 | ≥963 | ≥12.1 | ≥2388 | ≥30 | 310-350 | 39-44 | ≤200 | ≥7.5 | |||||||||||||||
N45EH | 1.33-1.38 | 13.3-13.8 | ≥995 | ≥12.5 | ≥2308 | ≥29 | 334-366 | 42-46 | ≤200 | ≥7.5 | |||||||||||||||
N28AH | 1.04-1.12 | 10.4-11.2 | ≥772 | ≥9.7 | ≥2786 | ≥35 | 207-239 | 26-30 | ≤230 | ≥7.5 | |||||||||||||||
N30AH | 1.08-1.15 | 10.8-11.5 | ≥812 | ≥10.2 | ≥2786 | ≥35 | 223-255 | 28-32 | ≤230 | ≥7.5 | |||||||||||||||
N33AH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥2786 | ≥35 | 247-279 | 31-35 | ≤230 | ≥7.5 | |||||||||||||||
N35AH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥2786 | ≥35 | 263-295 | 33-37 | ≤230 | ≥7.5 | |||||||||||||||
N38AH | 1.23-1.27 | 12.3-12.7 | ≥923 | ≥11.6 | ≥2786 | ≥35 | 287-318 | 36-40 | ≤230 | ≥7.5 | |||||||||||||||
N40AH | 1.26-1.31 | 12.6-13.1 | ≥939 | ≥11.8 | ≥2628 | ≥33 | 302-334 | 38-42 | ≤230 | ≥7.5 | |||||||||||||||
N42AH | 1.29-1.35 | 12.9-13.5 | ≥955 | ≥12.0 | ≥2628 | ≥33 | 318-350 | 40-44 | ≤230 | ≥7.5 | |||||||||||||||
Fortsetzung folgt |
Klasse | Remanence Induction | Koerzitivfeldstärke | Intrinsische Koerzitivfeldstärke | Maximal Energie Produkt | Arbeitstemperatur | Dichte | |||||||||||||||||
Br | HcB | HcJ | (BH)max | Tw | ρ | ||||||||||||||||||
T | KGs | KA/m | KOe | KA/m | KOe | KJ/m³ | MGOe | ℃ | g/cm3 | ||||||||||||||
Diffusionsprozess | |||||||||||||||||||||||
G48SH | 1.37-1.42 | 13.7-14.2 | ≥1011 | ≥13 | ≥1592 | ≥20 | 358-390 | 45-49 | ≤150 | ≥7.5 | |||||||||||||
G50SH | 1.40-1.45 | 14.0-14.5 | ≥1027 | ≥13.2 | ≥1592 | ≥20 | 374-406 | 47-51 | ≤150 | ≥7.5 | |||||||||||||
G52SH | 1.42-1.48 | 14.2-14.8 | ≥1067 | ≥13.4 | ≥1592 | ≥20 | 390-422 | 49-53 | ≤150 | ≥7.5 | |||||||||||||
G55SH | 1.46-1.51 | 14.6-15.1 | ≥1083 | ≥13.6 | ≥1592 | ≥20 | 406-438 | 51-55 | ≤150 | ≥7.5 | |||||||||||||
G45UH | 1.33-1.38 | 13.3-13.8 | ≥978 | ≥12.4 | ≥1990 | ≥25 | 334-366 | 42-46 | ≤180 | ≥7.5 | |||||||||||||
G48UH | 1.37-1.42 | 13.7-14.2 | ≥1027 | ≥12.9 | ≥1990 | ≥25 | 358-390 | 45-49 | ≤180 | ≥7.5 | |||||||||||||
G50UH | 1.40-1.45 | 14.0-14.5 | ≥1051 | ≥13.2 | ≥1990 | ≥25 | 374-406 | 47-51 | ≤180 | ≥7.5 | |||||||||||||
G52UH | 1.42-1.48 | 14.2-14.8 | ≥1067 | ≥13.4 | ≥1990 | ≥25 | 390-422 | 49-53 | ≤180 | ≥7.5 | |||||||||||||
G54UH | 1.46-1.51 | 14.6-15.1 | ≥1075 | ≥13.5 | ≥1990 | ≥25 | 406-438 | 51-55 | ≤180 | ≥7.5 | |||||||||||||
G40EH | 1.26-1.31 | 12.6-13.1 | ≥955 | ≥12.0 | ≥2388 | ≥30 | 302-334 | 38-42 | ≤200 | ≥7.5 | |||||||||||||
G44EH | 1.29-1.35 | 12.9-13.5 | ≥971 | ≥12.2 | ≥2388 | ≥30 | 318-350 | 40-44 | ≤200 | ≥7.5 | |||||||||||||
G46EH | 1.33-1.38 | 13.3-13.8 | ≥1011 | ≥12.7 | ≥2388 | ≥30 | 334-366 | 42-46 | ≤200 | ≥7.5 | |||||||||||||
G48EH | 1.37-1.42 | 13.7-14.2 | ≥1027 | ≥12.9 | ≥2388 | ≥30 | 358-390 | 45-49 | ≤200 | ≥7.5 | |||||||||||||
G50EH | 1.40-1.45 | 14.0-14.5 | ≥1051 | ≥13.2 | ≥2308 | ≥29 | 374-406 | 47-51 | ≤200 | ≥7.5 |
Arc Motor Magnet Pure Permanent Magnet is a high-performance permanent magnet material designed specifically for motors. This kind of magnet is made of rare earth permanent magnet materials (such as neodymium iron boron NdFeB), which has extremely high magnetic energy product and coercive force, and can generate a strong magnetic field in a small volume.
The main features of permanent magnet arc motor magnets include:

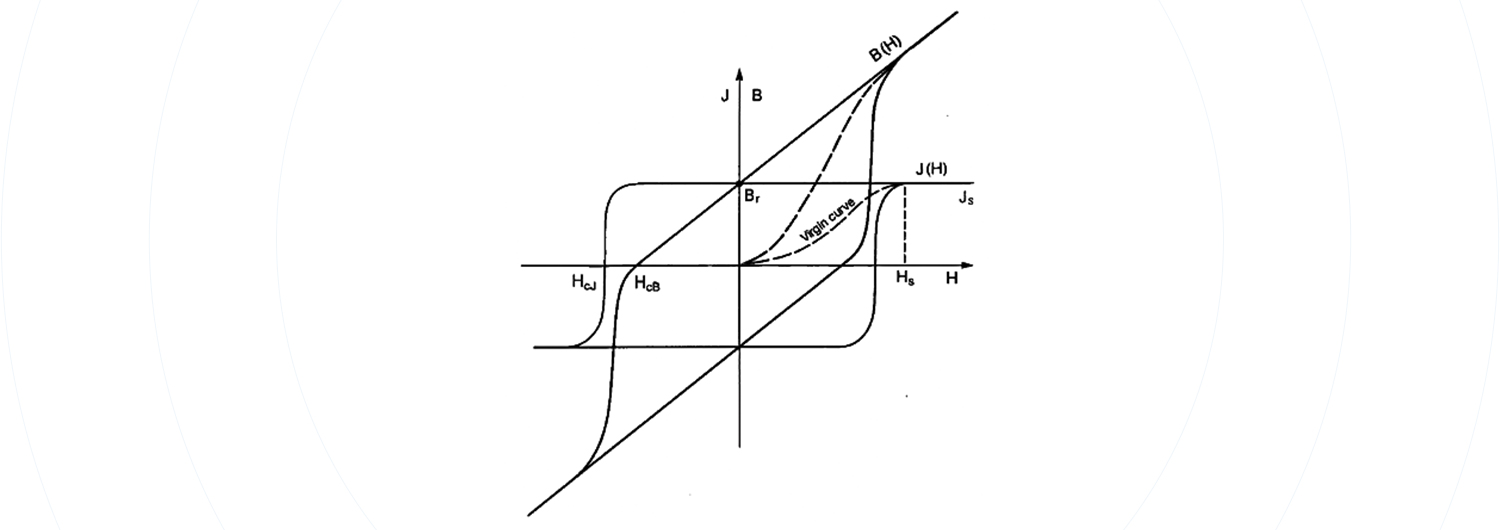

High remanence (Br): High remanence means that the magnet can still maintain strong magnetic properties after the external magnetic field is removed.
High coercive force (Hc): High coercive force means that the magnet has strong ability to resist external magnetic field interference and is not easy to demagnetize.
High magnetic energy product (BHmax): High magnetic energy product means that the magnet can store more magnetic energy in a smaller volume.
Good temperature stability: It can still maintain good magnetic properties in high temperature environments.
Application areas
Permanent magnet arc motor magnets are widely used in various motors, especially where high performance, efficiency and reliability are required. The following are its main application areas:
New energy vehicles: In the motors of new energy vehicles, permanent magnet arc motor magnets are used to generate driving force and improve the vehicle's cruising range and performance.
Industrial motors: In the fields of industrial automation, robots, CNC machine tools, etc., permanent magnet arc motor magnets are used to drive various equipment and improve production efficiency.
Home appliances: In household appliances such as washing machines, air conditioners, electric fans, etc., permanent magnet arc motor magnets are used to drive motors to achieve energy saving, low noise and long life.
Aerospace: In the aerospace field, permanent magnet arc motor magnets are used to drive various precision instruments and equipment to ensure their stable operation in extreme environments.
If you need consultation and feedback, please contact us, we will contact you as soon as possible!
As well known Arc motor magnet pure permanent magnet Suppliers and Arc motor magnet pure permanent magnet exporter in China, ST Magnet Co., Ltd provides a solid guarantee and foundation for the excellent quality of the NdFeB magnets.
