  • Arc permanent magnet sector magnet sheet
  • Arc permanent magnet sector magnet sheet

Arc permanent magnet sector magnet sheet

Pure permanent magnet

Arc permanent magnet sector magnet sheet is a permanent magnet material with a specific arc structure. It is made of high-performance permanent magnet materials, such as neodymium iron boron (NdFeB) or samarium cobalt (SmCo), with strong magnetism and high stability. This kind of magnetic sheet is widely used in electronic equipment and precision instruments such as motors, sensors, speakers, etc. Its arc-shaped design can better adapt to specific spatial layouts and provide a more uniform and precise magnetic field distribution. At the same time, the sector-shaped structure also makes the magnetic sheets easier to install and assemble, meeting various complex magnetic field requirements.

Contact Us
  • Specifications
  • Do You Have Any Question?
  • Grade Remanence Induction Coercivity Intrinsic Coercivity  ๋Maximum Energy
    product    		 Working
    Temperature    		 Density

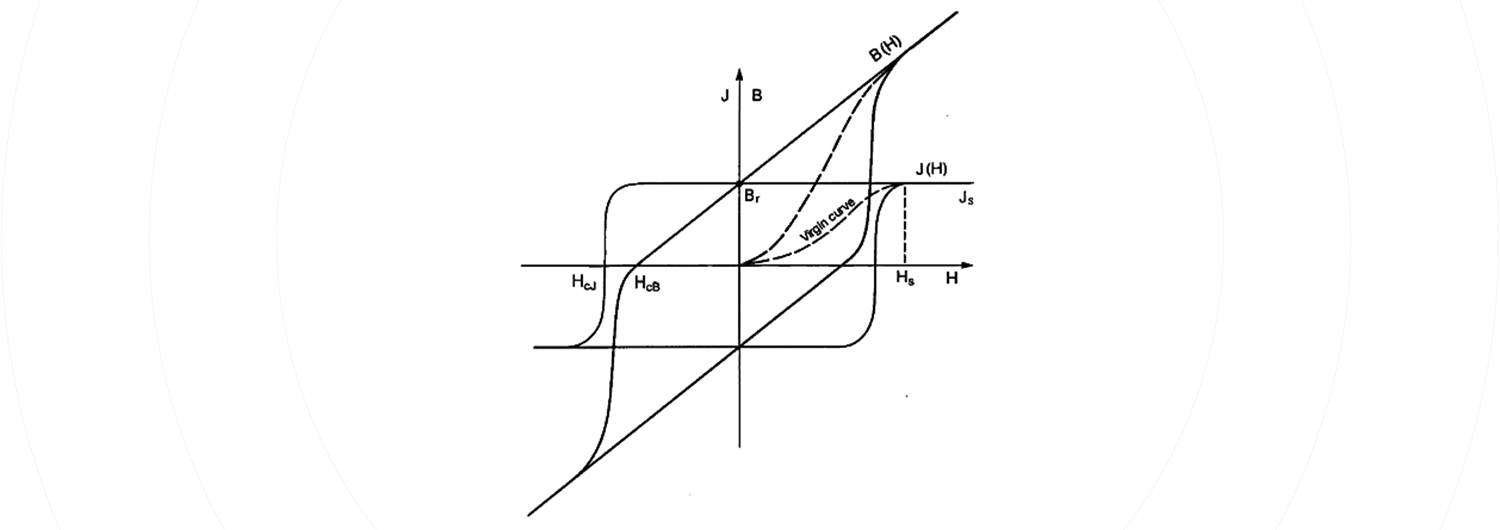

    Br HcB HcJ (BH)max Tw ρ
    T KGs KA/m KOe KA/m KOe KJ/m³ MGOe ℃ g/cm3
    General Process
    N38 1.23-1.30 12.3-13.0 ≥876 ≥11 ≥955 ≥12 287-318 36-40 ≤80 ≥7.5
    N40 1.26-1.32 12.6-13.2 ≥876 ≥11 ≥955 ≥12 302-334 38-42 ≤80 ≥7.5
    N42 1.29-1.35 12.9-13.5 ≥876 ≥11 ≥955 ≥12 318-350 40-44 ≤80 ≥7.5
    N45 1.32-1.38 13.2-13.8 ≥876 ≥11 ≥955 ≥12 334-366 42-46 ≤80 ≥7.5
    N48 1.37-1.43 13.7-14.3 ≥876 ≥11 ≥955 ≥12 358-390 45-49 ≤80 ≥7.5
    N50 1.40-1.45 14.0-14.5 ≥876 ≥11 ≥955 ≥12 374-406 47-51 ≤80 ≥7.5
    N52 1.42-1.48 14.2-14.8 ≥836 ≥10.5 ≥876 ≥11 390-422 49-53 ≤80 ≥7.5
    N55 1.46-1.51 14.6-15.1 ≥860 ≥10.8 ≥955 ≥12 406-438 51-55 ≤80 ≥7.5
    N38M 1.23-1.30 12.3-13.0 ≥915 ≥11.5 ≥1114 ≥14 287-318 36-40 ≤100 ≥7.5
    N40M 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1114 ≥14 302-334 38-42 ≤100 ≥7.5
    N42M 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1114 ≥14 318-350 40-44 ≤100 ≥7.5
    N45M 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1114 ≥14 334-366 42-46 ≤100 ≥7.5
    N48M 1.37-1.43 13.7-14.3 ≥1019 ≥12.8 ≥1114 ≥14 358-390 45-49 ≤100 ≥7.5
    N50M 1.40-1.45 14.0-14.5 ≥1043 ≥13.1 ≥1114 ≥14 374-406 47-51 ≤100 ≥7.5
    N52M 1.42-1.48 14.2-14.8 ≥1059 ≥13.3 ≥1114 ≥14 390-422 49-53 ≤100 ≥7.5
    N54M 1.46-1.51 14.6-15.1 ≥995 ≥12.5 ≥1035 ≥13 406-438 51-55 ≤100 ≥7.5
    N35H 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥1353 ≥17 263-295 33-37 ≤120 ≥7.5
    N38H 1.23-1.30 12.3-13.0 ≥915 ≥11.5 ≥1353 ≥17 286-318 36-40 ≤120 ≥7.5
    N40H 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1353 ≥17 302-334 38-42 ≤120 ≥7.5
    N42H 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1353 ≥17 318-350 40-44 ≤120 ≥7.5
    N45H 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1353 ≥17 334-366 42-46 ≤120 ≥7.5
    N48H 1.37-1.43 13.7-14.3 ≥1011 ≥12.7 ≥1353 ≥17 358-390 45-49 ≤120 ≥7.5
    N50H 1.40-1.45 14.0-14.5 ≥1027 ≥12.9 ≥1353 ≥17 374-406 47-51 ≤120 ≥7.5
    N52H 1.42-1.48 14.2-14.8 ≥1059 ≥13.3 ≥1353 ≥17 390-422 49-53 ≤120 ≥7.5
    N33SH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥1592 ≥20 247-279 31-35 ≤150 ≥7.5
    N35SH 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥1592 ≥20 263-295 33-37 ≤150 ≥7.5
    N38SH 1.23-1.29 12.3-12.9 ≥915 ≥11.5 ≥1592 ≥20 287-318 36-40 ≤150 ≥7.5
    N40SH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1592 ≥20 302-334 38-42 ≤150 ≥7.5
    N42SH 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1592 ≥20 318-350 40-44 ≤150 ≥7.5
    N45SH 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1592 ≥20 334-366 42-46 ≤150 ≥7.5
    to be conRnued

    Grade

    Remanence Induction

    Coercivity

    Intrinsic Coercivity

    Maximum Energy product

    WorkingTemperature

    Density

    Br

    HcB

    		 HcJ

    (BH)max

    Tw

    ρ

    Grade

    T

    KGs

    KA/m

    KOe

    KA/m

    KOe

    KJ/m³

    MGOe

    ℃

    		 g/cm3
    N48SH 1.37-1.43 13.7-14.3 ≥1011 ≥12.7 ≥1592 ≥20 358-390 45-49 ≤150 ≥7.5
    N50SH 1.40-1.45 14.0-14.5 ≥1027 ≥12.9 ≥1592 ≥20 374-406 47-51 ≤150 ≥7.5
    N52SH 1.42-1.48 14.2-14.8 ≥1035 ≥13 ≥1512 ≥19 390-422 49-53 ≤150 ≥7.5
    N30UH 1.08-1.13 10.8-11.3 ≥796 ≥10.0 ≥1990 ≥25 223-255 28-31 ≤180 ≥7.5
    N33UH 1.14-1.18 11.4-11.8 ≥852 ≥10.5 ≥1990 ≥25 247-279 31-35 ≤180 ≥7.5
    N35UH 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥1990 ≥25 263-295 33-37 ≤180 ≥7.5
    N38UH 1.23-1.29 12.3-12.9 ≥915 ≥11.5 ≥1990 ≥25 287-318 36-40 ≤180 ≥7.5
    N40UH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1990 ≥25 302-334 38-42 ≤180 ≥7.5
    N42UH 1.28-1.35 12.8-13.5 ≥963 ≥12.1 ≥1990 ≥25 310-350 39-44 ≤180 ≥7.5
    N45UH 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1990 ≥25 334-366 42-46 ≤180 ≥7.5
    N48UH 1.37-1.42 13.7-14.2 ≥1019 ≥12.8 ≥1910 ≥24 358-390 45-49 ≤180 ≥7.5
    N30EH 1.08-1.15 10.8-11.5 ≥812 ≥10.2 ≥2388 ≥30 223-255 28-32 ≤200 ≥7.5
    N33EH 1.14-1.21 11.4-12.1 ≥851 ≥10.7 ≥2388 ≥30 247-279 31-35 ≤200 ≥7.5
    N35EH 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥2388 ≥30 263-295 33-37 ≤200 ≥7.5
    N38EH 1.23-1.29 12.3-12.9 ≥915 ≥11.5 ≥2388 ≥30 287-318 36-40 ≤200 ≥7.5
    N40EH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥2388 ≥30 302-334 38-42 ≤200 ≥7.5
    N42EH 1.28-1.35 12.8-13.5 ≥963 ≥12.1 ≥2388 ≥30 310-350 39-44 ≤200 ≥7.5
    N45EH 1.33-1.38 13.3-13.8 ≥995 ≥12.5 ≥2308 ≥29 334-366 42-46 ≤200 ≥7.5
    N28AH 1.04-1.12 10.4-11.2 ≥772 ≥9.7 ≥2786 ≥35 207-239 26-30 ≤230 ≥7.5
    N30AH 1.08-1.15 10.8-11.5 ≥812 ≥10.2 ≥2786 ≥35 223-255 28-32 ≤230 ≥7.5
    N33AH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥2786 ≥35 247-279 31-35 ≤230 ≥7.5
    N35AH 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥2786 ≥35 263-295 33-37 ≤230 ≥7.5
    N38AH 1.23-1.27 12.3-12.7 ≥923 ≥11.6 ≥2786 ≥35 287-318 36-40 ≤230 ≥7.5
    N40AH 1.26-1.31 12.6-13.1 ≥939 ≥11.8 ≥2628 ≥33 302-334 38-42 ≤230 ≥7.5
    N42AH 1.29-1.35 12.9-13.5 ≥955 ≥12.0 ≥2628 ≥33 318-350 40-44 ≤230 ≥7.5
    to be conRnued
    Grade Remanence Induction Coercivity Intrinsic Coercivity  ๋Maximum Energy
    product    		 Working
    Temperature    		 Density
    Br HcB HcJ (BH)max Tw ρ
    T KGs KA/m KOe KA/m KOe KJ/m³ MGOe ℃ g/cm3
    Diffusion Process
    G48SH 1.37-1.42 13.7-14.2 ≥1011 ≥13 ≥1592 ≥20 358-390 45-49 ≤150 ≥7.5
    G50SH 1.40-1.45 14.0-14.5 ≥1027 ≥13.2 ≥1592 ≥20 374-406 47-51 ≤150 ≥7.5
    G52SH 1.42-1.48 14.2-14.8 ≥1067 ≥13.4 ≥1592 ≥20 390-422 49-53 ≤150 ≥7.5
    G55SH 1.46-1.51 14.6-15.1 ≥1083 ≥13.6 ≥1592 ≥20 406-438 51-55 ≤150 ≥7.5
    G45UH 1.33-1.38 13.3-13.8 ≥978 ≥12.4 ≥1990 ≥25 334-366 42-46 ≤180 ≥7.5
    G48UH 1.37-1.42 13.7-14.2 ≥1027 ≥12.9 ≥1990 ≥25 358-390 45-49 ≤180 ≥7.5
    G50UH 1.40-1.45 14.0-14.5 ≥1051 ≥13.2 ≥1990 ≥25 374-406 47-51 ≤180 ≥7.5
    G52UH 1.42-1.48 14.2-14.8 ≥1067 ≥13.4 ≥1990 ≥25 390-422 49-53 ≤180 ≥7.5
    G54UH 1.46-1.51 14.6-15.1 ≥1075 ≥13.5 ≥1990 ≥25 406-438 51-55 ≤180 ≥7.5
    G40EH 1.26-1.31 12.6-13.1 ≥955 ≥12.0 ≥2388 ≥30 302-334 38-42 ≤200 ≥7.5
    G44EH 1.29-1.35 12.9-13.5 ≥971 ≥12.2 ≥2388 ≥30 318-350 40-44 ≤200 ≥7.5
    G46EH 1.33-1.38 13.3-13.8 ≥1011 ≥12.7 ≥2388 ≥30 334-366 42-46 ≤200 ≥7.5
    G48EH 1.37-1.42 13.7-14.2 ≥1027 ≥12.9 ≥2388 ≥30 358-390 45-49 ≤200 ≥7.5
    G50EH 1.40-1.45 14.0-14.5 ≥1051 ≥13.2 ≥2308 ≥29 374-406 47-51 ≤200 ≥7.5

    Product description

    Arc permanent magnet sector magnet sheet is a high-performance permanent magnet material that uses rare earth elements (such as neodymium, iron, boron, etc.) as the main component and is made through a special manufacturing process. This kind of magnetic sheet has extremely high magnetic energy product, strong remanence and coercive force, and can generate a strong magnetic field in a relatively small volume.

    Features of Arc permanent magnet sector magnet sheet include:
    High magnetic energy product: Able to provide higher magnetic flux within a given volume, thereby improving the efficiency of the magnet.
    Strong residual magnetism: The magnet can still retain strong magnetism after the external magnetic field is removed.
    High coercivity: The magnet can resist external magnetic field interference and maintain stable magnetic properties.
    Good mechanical properties: high hardness and toughness, easy to process and install.

    Arc permanent magnet sector magnet sheet has a wide range of applications, including:

    Motor field: used in various motors (such as servo motors, stepper motors, brushless DC motors, etc.) to improve the performance and efficiency of the motors.
    Sensors and instruments: In measurement and control systems, as magnetic field sources or sensor components to achieve precise signal detection and transmission.
    Magnetic levitation technology: Provides stable magnetic field support in fields such as maglev trains and magnetic levitation bearings.
    Acoustic equipment: used in speakers, headphones and other audio equipment to improve sound quality and volume.
    Medical devices: In medical equipment such as magnetic resonance imaging (MRI), it serves as a magnetic field source to help doctors perform accurate diagnosis and treatment.
