Customized industrial magnet pure permanent magnet

Pure permanent magnet

Customized Industrial Magnet Pure Permanent Magnet products are widely used in many industrial fields with their excellent performance and customization. We use high-quality permanent magnet materials to ensure that the products have strong magnetic force and stable performance. Whether it is motors, sensors or medical equipment, our products can provide accurate and reliable magnetic field solutions to meet the different application needs of customers.

Phone: +86 15658879560

Tel: +86-0571-82856978

Fax: +86-0571-82856977

E-mail:  [email protected]

Contact Us
  • Specifications
  • Do You Have Any Question?
  • Grade Remanence Induction Coercivity Intrinsic Coercivity  ๋Maximum Energy
    product    		 Working
    Temperature    		 Density
    Br HcB HcJ (BH)max Tw ρ
    T KGs KA/m KOe KA/m KOe KJ/m³ MGOe ℃ g/cm3
    General Process
    N38 1.23-1.30 12.3-13.0 ≥876 ≥11 ≥955 ≥12 287-318 36-40 ≤80 ≥7.5
    N40 1.26-1.32 12.6-13.2 ≥876 ≥11 ≥955 ≥12 302-334 38-42 ≤80 ≥7.5
    N42 1.29-1.35 12.9-13.5 ≥876 ≥11 ≥955 ≥12 318-350 40-44 ≤80 ≥7.5
    N45 1.32-1.38 13.2-13.8 ≥876 ≥11 ≥955 ≥12 334-366 42-46 ≤80 ≥7.5
    N48 1.37-1.43 13.7-14.3 ≥876 ≥11 ≥955 ≥12 358-390 45-49 ≤80 ≥7.5
    N50 1.40-1.45 14.0-14.5 ≥876 ≥11 ≥955 ≥12 374-406 47-51 ≤80 ≥7.5
    N52 1.42-1.48 14.2-14.8 ≥836 ≥10.5 ≥876 ≥11 390-422 49-53 ≤80 ≥7.5
    N55 1.46-1.51 14.6-15.1 ≥860 ≥10.8 ≥955 ≥12 406-438 51-55 ≤80 ≥7.5
    N38M 1.23-1.30 12.3-13.0 ≥915 ≥11.5 ≥1114 ≥14 287-318 36-40 ≤100 ≥7.5
    N40M 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1114 ≥14 302-334 38-42 ≤100 ≥7.5
    N42M 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1114 ≥14 318-350 40-44 ≤100 ≥7.5
    N45M 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1114 ≥14 334-366 42-46 ≤100 ≥7.5
    N48M 1.37-1.43 13.7-14.3 ≥1019 ≥12.8 ≥1114 ≥14 358-390 45-49 ≤100 ≥7.5
    N50M 1.40-1.45 14.0-14.5 ≥1043 ≥13.1 ≥1114 ≥14 374-406 47-51 ≤100 ≥7.5
    N52M 1.42-1.48 14.2-14.8 ≥1059 ≥13.3 ≥1114 ≥14 390-422 49-53 ≤100 ≥7.5
    N54M 1.46-1.51 14.6-15.1 ≥995 ≥12.5 ≥1035 ≥13 406-438 51-55 ≤100 ≥7.5
    N35H 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥1353 ≥17 263-295 33-37 ≤120 ≥7.5
    N38H 1.23-1.30 12.3-13.0 ≥915 ≥11.5 ≥1353 ≥17 286-318 36-40 ≤120 ≥7.5
    N40H 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1353 ≥17 302-334 38-42 ≤120 ≥7.5
    N42H 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1353 ≥17 318-350 40-44 ≤120 ≥7.5
    N45H 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1353 ≥17 334-366 42-46 ≤120 ≥7.5
    N48H 1.37-1.43 13.7-14.3 ≥1011 ≥12.7 ≥1353 ≥17 358-390 45-49 ≤120 ≥7.5
    N50H 1.40-1.45 14.0-14.5 ≥1027 ≥12.9 ≥1353 ≥17 374-406 47-51 ≤120 ≥7.5
    N52H 1.42-1.48 14.2-14.8 ≥1059 ≥13.3 ≥1353 ≥17 390-422 49-53 ≤120 ≥7.5
    N33SH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥1592 ≥20 247-279 31-35 ≤150 ≥7.5
    N35SH 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥1592 ≥20 263-295 33-37 ≤150 ≥7.5
    N38SH 1.23-1.29 12.3-12.9 ≥915 ≥11.5 ≥1592 ≥20 287-318 36-40 ≤150 ≥7.5
    N40SH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1592 ≥20 302-334 38-42 ≤150 ≥7.5
    N42SH 1.29-1.35 12.9-13.5 ≥963 ≥12.1 ≥1592 ≥20 318-350 40-44 ≤150 ≥7.5
    N45SH 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1592 ≥20 334-366 42-46 ≤150 ≥7.5
    to be conRnued

    Grade

    Remanence Induction

    Coercivity

    Intrinsic Coercivity

    Maximum Energy product

    WorkingTemperature

    Density

    Br

    HcB

    		 HcJ

    (BH)max

    Tw

    ρ

    Grade

    T

    KGs

    KA/m

    KOe

    KA/m

    KOe

    KJ/m³

    MGOe

    ℃

    		 g/cm3
    N48SH 1.37-1.43 13.7-14.3 ≥1011 ≥12.7 ≥1592 ≥20 358-390 45-49 ≤150 ≥7.5
    N50SH 1.40-1.45 14.0-14.5 ≥1027 ≥12.9 ≥1592 ≥20 374-406 47-51 ≤150 ≥7.5
    N52SH 1.42-1.48 14.2-14.8 ≥1035 ≥13 ≥1512 ≥19 390-422 49-53 ≤150 ≥7.5
    N30UH 1.08-1.13 10.8-11.3 ≥796 ≥10.0 ≥1990 ≥25 223-255 28-31 ≤180 ≥7.5
    N33UH 1.14-1.18 11.4-11.8 ≥852 ≥10.5 ≥1990 ≥25 247-279 31-35 ≤180 ≥7.5
    N35UH 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥1990 ≥25 263-295 33-37 ≤180 ≥7.5
    N38UH 1.23-1.29 12.3-12.9 ≥915 ≥11.5 ≥1990 ≥25 287-318 36-40 ≤180 ≥7.5
    N40UH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥1990 ≥25 302-334 38-42 ≤180 ≥7.5
    N42UH 1.28-1.35 12.8-13.5 ≥963 ≥12.1 ≥1990 ≥25 310-350 39-44 ≤180 ≥7.5
    N45UH 1.32-1.38 13.2-13.8 ≥987 ≥12.4 ≥1990 ≥25 334-366 42-46 ≤180 ≥7.5
    N48UH 1.37-1.42 13.7-14.2 ≥1019 ≥12.8 ≥1910 ≥24 358-390 45-49 ≤180 ≥7.5
    N30EH 1.08-1.15 10.8-11.5 ≥812 ≥10.2 ≥2388 ≥30 223-255 28-32 ≤200 ≥7.5
    N33EH 1.14-1.21 11.4-12.1 ≥851 ≥10.7 ≥2388 ≥30 247-279 31-35 ≤200 ≥7.5
    N35EH 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥2388 ≥30 263-295 33-37 ≤200 ≥7.5
    N38EH 1.23-1.29 12.3-12.9 ≥915 ≥11.5 ≥2388 ≥30 287-318 36-40 ≤200 ≥7.5
    N40EH 1.26-1.32 12.6-13.2 ≥939 ≥11.8 ≥2388 ≥30 302-334 38-42 ≤200 ≥7.5
    N42EH 1.28-1.35 12.8-13.5 ≥963 ≥12.1 ≥2388 ≥30 310-350 39-44 ≤200 ≥7.5
    N45EH 1.33-1.38 13.3-13.8 ≥995 ≥12.5 ≥2308 ≥29 334-366 42-46 ≤200 ≥7.5
    N28AH 1.04-1.12 10.4-11.2 ≥772 ≥9.7 ≥2786 ≥35 207-239 26-30 ≤230 ≥7.5
    N30AH 1.08-1.15 10.8-11.5 ≥812 ≥10.2 ≥2786 ≥35 223-255 28-32 ≤230 ≥7.5
    N33AH 1.14-1.21 11.4-12.1 ≥852 ≥10.7 ≥2786 ≥35 247-279 31-35 ≤230 ≥7.5
    N35AH 1.17-1.24 11.7-12.4 ≥876 ≥11.0 ≥2786 ≥35 263-295 33-37 ≤230 ≥7.5
    N38AH 1.23-1.27 12.3-12.7 ≥923 ≥11.6 ≥2786 ≥35 287-318 36-40 ≤230 ≥7.5
    N40AH 1.26-1.31 12.6-13.1 ≥939 ≥11.8 ≥2628 ≥33 302-334 38-42 ≤230 ≥7.5
    N42AH 1.29-1.35 12.9-13.5 ≥955 ≥12.0 ≥2628 ≥33 318-350 40-44 ≤230 ≥7.5
    to be conRnued
    Grade Remanence Induction Coercivity Intrinsic Coercivity  ๋Maximum Energy
    product    		 Working
    Temperature    		 Density
    Br HcB HcJ (BH)max Tw ρ
    T KGs KA/m KOe KA/m KOe KJ/m³ MGOe ℃ g/cm3
    Diffusion Process
    G48SH 1.37-1.42 13.7-14.2 ≥1011 ≥13 ≥1592 ≥20 358-390 45-49 ≤150 ≥7.5
    G50SH 1.40-1.45 14.0-14.5 ≥1027 ≥13.2 ≥1592 ≥20 374-406 47-51 ≤150 ≥7.5
    G52SH 1.42-1.48 14.2-14.8 ≥1067 ≥13.4 ≥1592 ≥20 390-422 49-53 ≤150 ≥7.5
    G55SH 1.46-1.51 14.6-15.1 ≥1083 ≥13.6 ≥1592 ≥20 406-438 51-55 ≤150 ≥7.5
    G45UH 1.33-1.38 13.3-13.8 ≥978 ≥12.4 ≥1990 ≥25 334-366 42-46 ≤180 ≥7.5
    G48UH 1.37-1.42 13.7-14.2 ≥1027 ≥12.9 ≥1990 ≥25 358-390 45-49 ≤180 ≥7.5
    G50UH 1.40-1.45 14.0-14.5 ≥1051 ≥13.2 ≥1990 ≥25 374-406 47-51 ≤180 ≥7.5
    G52UH 1.42-1.48 14.2-14.8 ≥1067 ≥13.4 ≥1990 ≥25 390-422 49-53 ≤180 ≥7.5
    G54UH 1.46-1.51 14.6-15.1 ≥1075 ≥13.5 ≥1990 ≥25 406-438 51-55 ≤180 ≥7.5
    G40EH 1.26-1.31 12.6-13.1 ≥955 ≥12.0 ≥2388 ≥30 302-334 38-42 ≤200 ≥7.5
    G44EH 1.29-1.35 12.9-13.5 ≥971 ≥12.2 ≥2388 ≥30 318-350 40-44 ≤200 ≥7.5
    G46EH 1.33-1.38 13.3-13.8 ≥1011 ≥12.7 ≥2388 ≥30 334-366 42-46 ≤200 ≥7.5
    G48EH 1.37-1.42 13.7-14.2 ≥1027 ≥12.9 ≥2388 ≥30 358-390 45-49 ≤200 ≥7.5
    G50EH 1.40-1.45 14.0-14.5 ≥1051 ≥13.2 ≥2308 ≥29 374-406 47-51 ≤200 ≥7.5

    Product description

    Customized Industrial Magnet Pure Permanent Magnet

    Material Type: According to customer needs, we provide a variety of high-performance permanent magnet materials, such as NdFeB (neodymium iron boron), SmCo (samarium cobalt), AlNiCo (aluminum nickel cobalt), etc.
    Magnetic properties: Remanence (Br) ranges from 0.8T to 1.5T, coercivity (Hc) can reach more than 20kOe, and the maximum magnetic energy product (BHmax) is up to 50MGOe.
    Dimensions: Length, width, and thickness can be customized according to customer needs, with the minimum size up to 0.1mm and the maximum size up to several meters.
    Temperature stability: The operating temperature range is from -40°C to +200°C, ensuring stable magnetic properties in various environments.
    Surface treatment: Various surface treatments such as galvanizing, nickel plating, and electrophoretic paint are provided to enhance the corrosion resistance and appearance of the magnet.
    Tolerance: The dimensional tolerance is controlled within ±0.01mm to ensure high precision and consistency of the product.

    Scope or application scenarios:

    Motors and generators: As key components of motors and generators, they improve motor efficiency and power density while reducing the size and weight of motors.
    Medical equipment: Such as magnetic resonance imaging (MRI) equipment, magnetic navigation, etc., using strong magnetic fields for precise medical diagnosis and treatment.
    Automotive industry: Used in key components such as automotive generators, motors and sensors to improve the energy efficiency and performance of automobiles.
    Aerospace: In aerospace vehicles, it is used to manufacture key components such as high-precision sensors, navigation systems and control systems.
    Wind power generation: In wind turbines, it is used in the generator part to convert wind energy into electrical energy.
    Consumer electronics: Such as electronic components such as speakers, vibration motors, and electronic fuses to improve the performance and reliability of equipment.

    Scope:

    Customized Industrial Magnet Pure Permanent Magnet products are widely used in power, electronics, medical, automotive, aerospace, new energy and other fields. We are committed to providing customers with high-quality, high-performance permanent magnet products to meet the needs of different fields. At the same time, we provide customized services and provide personalized solutions according to the specific needs of customers.

Manufactory

As well known Customized industrial magnet pure permanent magnet Suppliers and Customized industrial magnet pure permanent magnet exporter in China, ST Magnet Co., Ltd provides a solid guarantee and foundation for the excellent quality of the NdFeB magnets.

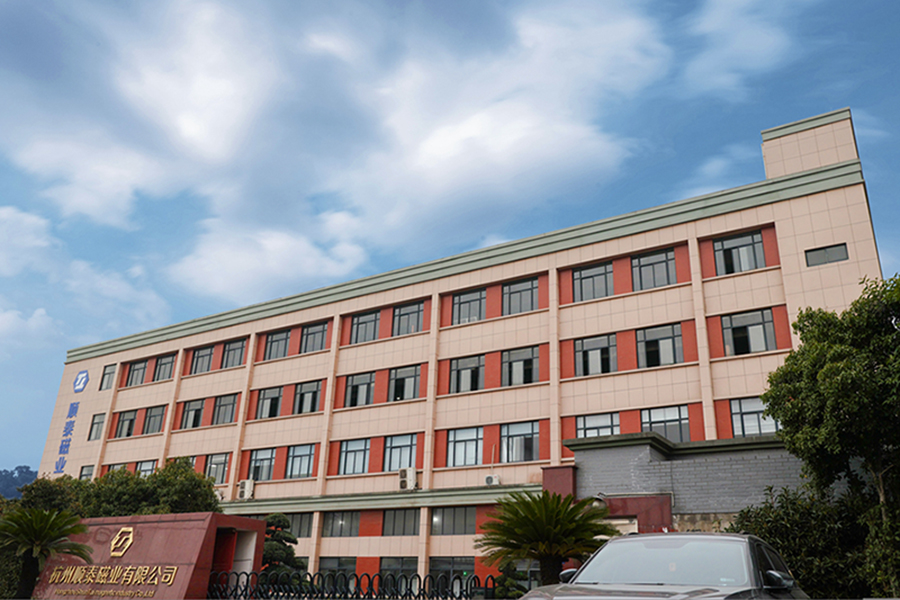

  • Factory Exterior

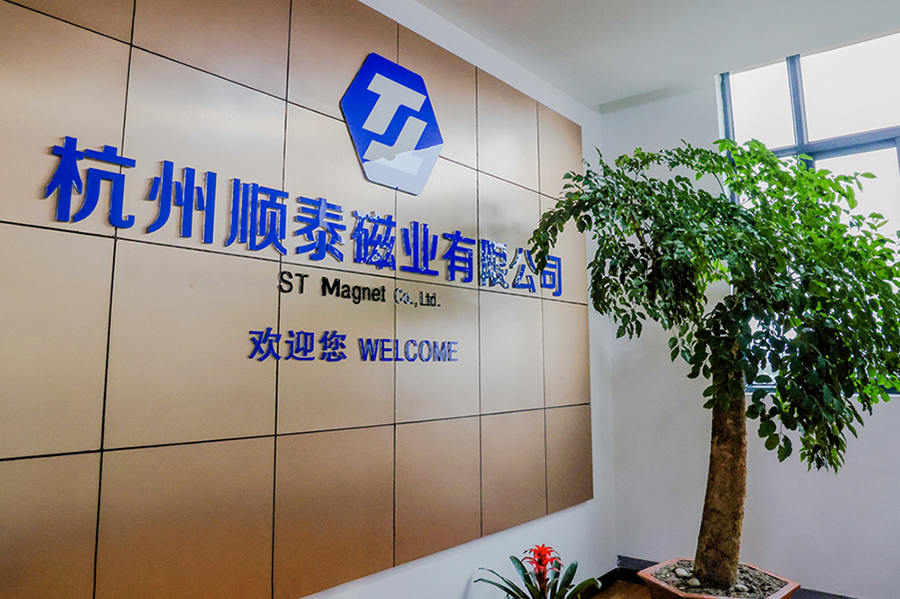

  • Office Area
  • Rough warehouse
  • General manager

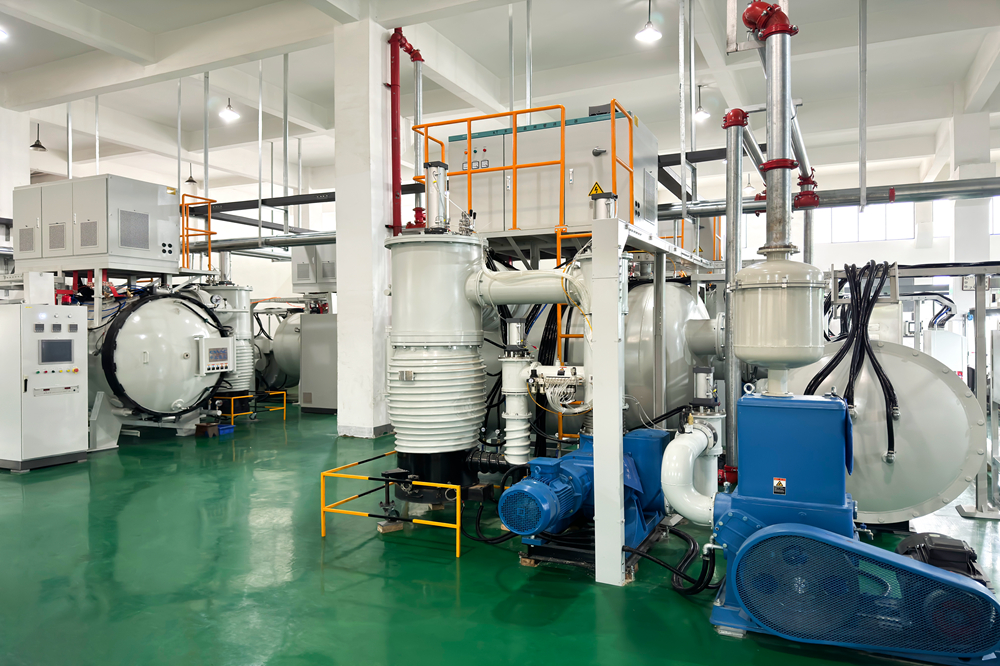

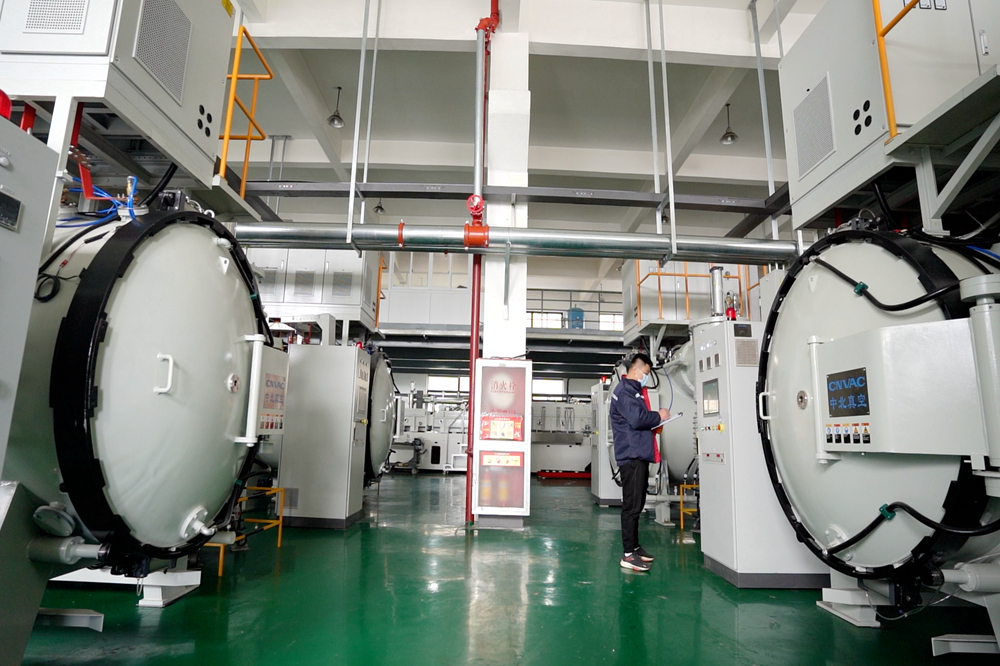

  • Sintering furnace
