Shaped Hole Countersunk Hole Pure Permanent Magnet is made of high-quality pure permanent magnet material and is precisely processed. The product has excellent magnetic properties, a unique shape, and a countersunk hole design for easy installation. Whether it is used for motors, sensors or other precision equipment, it can provide stable and reliable magnetic support.
Phone: +86 15658879560
Tel: +86-0571-82856978
Fax: +86-0571-82856977
E-mail: [email protected]
Grade | Remanence Induction | Coercivity | Intrinsic Coercivity | ๋Maximum Energy product |
Working Temperature |
Density | |||||||||||||||||
Br | HcB | HcJ | (BH)max | Tw | ρ | ||||||||||||||||||
T | KGs | KA/m | KOe | KA/m | KOe | KJ/m³ | MGOe | ℃ | g/cm3 | ||||||||||||||
General Process | |||||||||||||||||||||||
N38 | 1.23-1.30 | 12.3-13.0 | ≥876 | ≥11 | ≥955 | ≥12 | 287-318 | 36-40 | ≤80 | ≥7.5 | |||||||||||||
N40 | 1.26-1.32 | 12.6-13.2 | ≥876 | ≥11 | ≥955 | ≥12 | 302-334 | 38-42 | ≤80 | ≥7.5 | |||||||||||||
N42 | 1.29-1.35 | 12.9-13.5 | ≥876 | ≥11 | ≥955 | ≥12 | 318-350 | 40-44 | ≤80 | ≥7.5 | |||||||||||||
N45 | 1.32-1.38 | 13.2-13.8 | ≥876 | ≥11 | ≥955 | ≥12 | 334-366 | 42-46 | ≤80 | ≥7.5 | |||||||||||||
N48 | 1.37-1.43 | 13.7-14.3 | ≥876 | ≥11 | ≥955 | ≥12 | 358-390 | 45-49 | ≤80 | ≥7.5 | |||||||||||||
N50 | 1.40-1.45 | 14.0-14.5 | ≥876 | ≥11 | ≥955 | ≥12 | 374-406 | 47-51 | ≤80 | ≥7.5 | |||||||||||||
N52 | 1.42-1.48 | 14.2-14.8 | ≥836 | ≥10.5 | ≥876 | ≥11 | 390-422 | 49-53 | ≤80 | ≥7.5 | |||||||||||||
N55 | 1.46-1.51 | 14.6-15.1 | ≥860 | ≥10.8 | ≥955 | ≥12 | 406-438 | 51-55 | ≤80 | ≥7.5 | |||||||||||||
N38M | 1.23-1.30 | 12.3-13.0 | ≥915 | ≥11.5 | ≥1114 | ≥14 | 287-318 | 36-40 | ≤100 | ≥7.5 | |||||||||||||
N40M | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1114 | ≥14 | 302-334 | 38-42 | ≤100 | ≥7.5 | |||||||||||||
N42M | 1.29-1.35 | 12.9-13.5 | ≥963 | ≥12.1 | ≥1114 | ≥14 | 318-350 | 40-44 | ≤100 | ≥7.5 | |||||||||||||
N45M | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1114 | ≥14 | 334-366 | 42-46 | ≤100 | ≥7.5 | |||||||||||||
N48M | 1.37-1.43 | 13.7-14.3 | ≥1019 | ≥12.8 | ≥1114 | ≥14 | 358-390 | 45-49 | ≤100 | ≥7.5 | |||||||||||||
N50M | 1.40-1.45 | 14.0-14.5 | ≥1043 | ≥13.1 | ≥1114 | ≥14 | 374-406 | 47-51 | ≤100 | ≥7.5 | |||||||||||||
N52M | 1.42-1.48 | 14.2-14.8 | ≥1059 | ≥13.3 | ≥1114 | ≥14 | 390-422 | 49-53 | ≤100 | ≥7.5 | |||||||||||||
N54M | 1.46-1.51 | 14.6-15.1 | ≥995 | ≥12.5 | ≥1035 | ≥13 | 406-438 | 51-55 | ≤100 | ≥7.5 | |||||||||||||
N35H | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥1353 | ≥17 | 263-295 | 33-37 | ≤120 | ≥7.5 | |||||||||||||
N38H | 1.23-1.30 | 12.3-13.0 | ≥915 | ≥11.5 | ≥1353 | ≥17 | 286-318 | 36-40 | ≤120 | ≥7.5 | |||||||||||||
N40H | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1353 | ≥17 | 302-334 | 38-42 | ≤120 | ≥7.5 | |||||||||||||
N42H | 1.29-1.35 | 12.9-13.5 | ≥963 | ≥12.1 | ≥1353 | ≥17 | 318-350 | 40-44 | ≤120 | ≥7.5 | |||||||||||||
N45H | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1353 | ≥17 | 334-366 | 42-46 | ≤120 | ≥7.5 | |||||||||||||
N48H | 1.37-1.43 | 13.7-14.3 | ≥1011 | ≥12.7 | ≥1353 | ≥17 | 358-390 | 45-49 | ≤120 | ≥7.5 | |||||||||||||
N50H | 1.40-1.45 | 14.0-14.5 | ≥1027 | ≥12.9 | ≥1353 | ≥17 | 374-406 | 47-51 | ≤120 | ≥7.5 | |||||||||||||
N52H | 1.42-1.48 | 14.2-14.8 | ≥1059 | ≥13.3 | ≥1353 | ≥17 | 390-422 | 49-53 | ≤120 | ≥7.5 | |||||||||||||
N33SH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥1592 | ≥20 | 247-279 | 31-35 | ≤150 | ≥7.5 | |||||||||||||
N35SH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥1592 | ≥20 | 263-295 | 33-37 | ≤150 | ≥7.5 | |||||||||||||
N38SH | 1.23-1.29 | 12.3-12.9 | ≥915 | ≥11.5 | ≥1592 | ≥20 | 287-318 | 36-40 | ≤150 | ≥7.5 | |||||||||||||
N40SH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1592 | ≥20 | 302-334 | 38-42 | ≤150 | ≥7.5 | |||||||||||||
N42SH | 1.29-1.35 | 12.9-13.5 | ≥963 | ≥12.1 | ≥1592 | ≥20 | 318-350 | 40-44 | ≤150 | ≥7.5 | |||||||||||||
N45SH | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1592 | ≥20 | 334-366 | 42-46 | ≤150 | ≥7.5 | |||||||||||||
to be conRnued |
Grade |
Remanence Induction |
Coercivity |
Intrinsic Coercivity |
Maximum Energy product |
WorkingTemperature |
Density |
|||||||||||||||||||
Br |
HcB |
HcJ |
(BH)max |
Tw |
ρ |
||||||||||||||||||||
Grade |
T |
KGs |
KA/m |
KOe |
KA/m |
KOe |
KJ/m³ |
MGOe |
℃ |
g/cm3 | |||||||||||||||
N48SH | 1.37-1.43 | 13.7-14.3 | ≥1011 | ≥12.7 | ≥1592 | ≥20 | 358-390 | 45-49 | ≤150 | ≥7.5 | |||||||||||||||
N50SH | 1.40-1.45 | 14.0-14.5 | ≥1027 | ≥12.9 | ≥1592 | ≥20 | 374-406 | 47-51 | ≤150 | ≥7.5 | |||||||||||||||
N52SH | 1.42-1.48 | 14.2-14.8 | ≥1035 | ≥13 | ≥1512 | ≥19 | 390-422 | 49-53 | ≤150 | ≥7.5 | |||||||||||||||
N30UH | 1.08-1.13 | 10.8-11.3 | ≥796 | ≥10.0 | ≥1990 | ≥25 | 223-255 | 28-31 | ≤180 | ≥7.5 | |||||||||||||||
N33UH | 1.14-1.18 | 11.4-11.8 | ≥852 | ≥10.5 | ≥1990 | ≥25 | 247-279 | 31-35 | ≤180 | ≥7.5 | |||||||||||||||
N35UH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥1990 | ≥25 | 263-295 | 33-37 | ≤180 | ≥7.5 | |||||||||||||||
N38UH | 1.23-1.29 | 12.3-12.9 | ≥915 | ≥11.5 | ≥1990 | ≥25 | 287-318 | 36-40 | ≤180 | ≥7.5 | |||||||||||||||
N40UH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥1990 | ≥25 | 302-334 | 38-42 | ≤180 | ≥7.5 | |||||||||||||||
N42UH | 1.28-1.35 | 12.8-13.5 | ≥963 | ≥12.1 | ≥1990 | ≥25 | 310-350 | 39-44 | ≤180 | ≥7.5 | |||||||||||||||
N45UH | 1.32-1.38 | 13.2-13.8 | ≥987 | ≥12.4 | ≥1990 | ≥25 | 334-366 | 42-46 | ≤180 | ≥7.5 | |||||||||||||||
N48UH | 1.37-1.42 | 13.7-14.2 | ≥1019 | ≥12.8 | ≥1910 | ≥24 | 358-390 | 45-49 | ≤180 | ≥7.5 | |||||||||||||||
N30EH | 1.08-1.15 | 10.8-11.5 | ≥812 | ≥10.2 | ≥2388 | ≥30 | 223-255 | 28-32 | ≤200 | ≥7.5 | |||||||||||||||
N33EH | 1.14-1.21 | 11.4-12.1 | ≥851 | ≥10.7 | ≥2388 | ≥30 | 247-279 | 31-35 | ≤200 | ≥7.5 | |||||||||||||||
N35EH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥2388 | ≥30 | 263-295 | 33-37 | ≤200 | ≥7.5 | |||||||||||||||
N38EH | 1.23-1.29 | 12.3-12.9 | ≥915 | ≥11.5 | ≥2388 | ≥30 | 287-318 | 36-40 | ≤200 | ≥7.5 | |||||||||||||||
N40EH | 1.26-1.32 | 12.6-13.2 | ≥939 | ≥11.8 | ≥2388 | ≥30 | 302-334 | 38-42 | ≤200 | ≥7.5 | |||||||||||||||
N42EH | 1.28-1.35 | 12.8-13.5 | ≥963 | ≥12.1 | ≥2388 | ≥30 | 310-350 | 39-44 | ≤200 | ≥7.5 | |||||||||||||||
N45EH | 1.33-1.38 | 13.3-13.8 | ≥995 | ≥12.5 | ≥2308 | ≥29 | 334-366 | 42-46 | ≤200 | ≥7.5 | |||||||||||||||
N28AH | 1.04-1.12 | 10.4-11.2 | ≥772 | ≥9.7 | ≥2786 | ≥35 | 207-239 | 26-30 | ≤230 | ≥7.5 | |||||||||||||||
N30AH | 1.08-1.15 | 10.8-11.5 | ≥812 | ≥10.2 | ≥2786 | ≥35 | 223-255 | 28-32 | ≤230 | ≥7.5 | |||||||||||||||
N33AH | 1.14-1.21 | 11.4-12.1 | ≥852 | ≥10.7 | ≥2786 | ≥35 | 247-279 | 31-35 | ≤230 | ≥7.5 | |||||||||||||||
N35AH | 1.17-1.24 | 11.7-12.4 | ≥876 | ≥11.0 | ≥2786 | ≥35 | 263-295 | 33-37 | ≤230 | ≥7.5 | |||||||||||||||
N38AH | 1.23-1.27 | 12.3-12.7 | ≥923 | ≥11.6 | ≥2786 | ≥35 | 287-318 | 36-40 | ≤230 | ≥7.5 | |||||||||||||||
N40AH | 1.26-1.31 | 12.6-13.1 | ≥939 | ≥11.8 | ≥2628 | ≥33 | 302-334 | 38-42 | ≤230 | ≥7.5 | |||||||||||||||
N42AH | 1.29-1.35 | 12.9-13.5 | ≥955 | ≥12.0 | ≥2628 | ≥33 | 318-350 | 40-44 | ≤230 | ≥7.5 | |||||||||||||||
to be conRnued |
Grade | Remanence Induction | Coercivity | ٖIntrinsic Coercivity | ๋Maximum Energy product |
Working Temperature |
Density | |||||||||||||||||
Br | HcB | HcJ | (BH)max | Tw | ρ | ||||||||||||||||||
T | KGs | KA/m | KOe | KA/m | KOe | KJ/m³ | MGOe | ℃ | g/cm3 | ||||||||||||||
Diffusion Process | |||||||||||||||||||||||
G48SH | 1.37-1.42 | 13.7-14.2 | ≥1011 | ≥13 | ≥1592 | ≥20 | 358-390 | 45-49 | ≤150 | ≥7.5 | |||||||||||||
G50SH | 1.40-1.45 | 14.0-14.5 | ≥1027 | ≥13.2 | ≥1592 | ≥20 | 374-406 | 47-51 | ≤150 | ≥7.5 | |||||||||||||
G52SH | 1.42-1.48 | 14.2-14.8 | ≥1067 | ≥13.4 | ≥1592 | ≥20 | 390-422 | 49-53 | ≤150 | ≥7.5 | |||||||||||||
G55SH | 1.46-1.51 | 14.6-15.1 | ≥1083 | ≥13.6 | ≥1592 | ≥20 | 406-438 | 51-55 | ≤150 | ≥7.5 | |||||||||||||
G45UH | 1.33-1.38 | 13.3-13.8 | ≥978 | ≥12.4 | ≥1990 | ≥25 | 334-366 | 42-46 | ≤180 | ≥7.5 | |||||||||||||
G48UH | 1.37-1.42 | 13.7-14.2 | ≥1027 | ≥12.9 | ≥1990 | ≥25 | 358-390 | 45-49 | ≤180 | ≥7.5 | |||||||||||||
G50UH | 1.40-1.45 | 14.0-14.5 | ≥1051 | ≥13.2 | ≥1990 | ≥25 | 374-406 | 47-51 | ≤180 | ≥7.5 | |||||||||||||
G52UH | 1.42-1.48 | 14.2-14.8 | ≥1067 | ≥13.4 | ≥1990 | ≥25 | 390-422 | 49-53 | ≤180 | ≥7.5 | |||||||||||||
G54UH | 1.46-1.51 | 14.6-15.1 | ≥1075 | ≥13.5 | ≥1990 | ≥25 | 406-438 | 51-55 | ≤180 | ≥7.5 | |||||||||||||
G40EH | 1.26-1.31 | 12.6-13.1 | ≥955 | ≥12.0 | ≥2388 | ≥30 | 302-334 | 38-42 | ≤200 | ≥7.5 | |||||||||||||
G44EH | 1.29-1.35 | 12.9-13.5 | ≥971 | ≥12.2 | ≥2388 | ≥30 | 318-350 | 40-44 | ≤200 | ≥7.5 | |||||||||||||
G46EH | 1.33-1.38 | 13.3-13.8 | ≥1011 | ≥12.7 | ≥2388 | ≥30 | 334-366 | 42-46 | ≤200 | ≥7.5 | |||||||||||||
G48EH | 1.37-1.42 | 13.7-14.2 | ≥1027 | ≥12.9 | ≥2388 | ≥30 | 358-390 | 45-49 | ≤200 | ≥7.5 | |||||||||||||
G50EH | 1.40-1.45 | 14.0-14.5 | ≥1051 | ≥13.2 | ≥2308 | ≥29 | 374-406 | 47-51 | ≤200 | ≥7.5 |
Shaped Hole Countersunk Hole Pure Permanent Magnet
Product parameters:

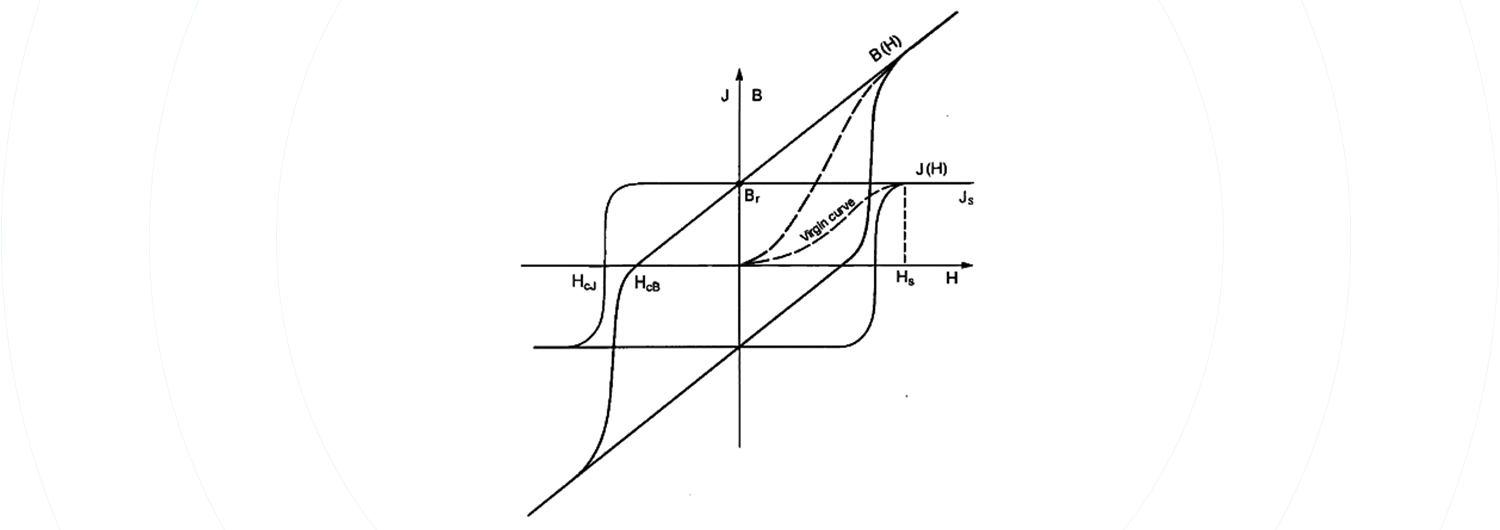

Remanence Br: After strict magnetization to technical saturation, our products have excellent residual magnetic induction intensity, ensuring long-term stable magnetic properties.
Coercive force Hc: Our products have extremely high magnetic coercive force and can maintain a stable magnetic field in various environments.
Magnetic energy product BH: The excellent magnetic energy product enables the product to establish a strong magnetic energy density in the air gap space to meet various application requirements.
Application scenarios and fields:
Motors and generators: As key components of motors and generators, our products can provide stable and reliable magnetic fields to improve the efficiency and performance of equipment.
Medical devices: Such as magnetic resonance imaging (MRI) equipment, magnetic navigation, etc., our products provide strong support for the medical field with their excellent magnetic properties.
Automotive industry: In key components such as automotive generators, motors and sensors, our products play an important role and help the development of the automotive industry.
Other high-tech equipment: In addition, our products are also widely used in high-tech equipment such as wind turbines, maglev trains, aerospace vehicles, etc., showing its broad application prospects.
Choosing us means choosing trust and quality!
If you need consultation and feedback, please contact us, we will contact you as soon as possible!
As well known Shaped hole countersunk hole pure permanent magnet Suppliers and Shaped hole countersunk hole pure permanent magnet exporter in China, ST Magnet Co., Ltd provides a solid guarantee and foundation for the excellent quality of the NdFeB magnets.
