Arc motor magnet pure permanent magnet

Arc motor magnet pure permanent magnet is a motor magnet made of pure permanent magnet material. With its unique arc design, this magnet can more effectively generate and concentrate magnetic fields, improving the operating efficiency and performance of the motor. Pure permanent magnet materials have stable magnetism and high magnetic energy product, can continuously generate magnetic fields without external energy supply, and are suitable for various high-precision and high-efficiency motor applications.

Keyword:

Arc motor magnet pure permanent magnet

Classification:

Pure Permanent Magnet

Inquiry

Hot Products

Klasse

Remanenz Induktion

Koerzitivfeldstärke

Intrinsische Koerzitivfeldstärke

Maximal Energie Produkt

Arbeitstemperatur

Dichte

HcB

HcJ

(BH)max

KGs

KA/m

KOe

KA/m

KOe

KJ/m³

MGOe

℃

g/cm3

Allgemeiner Prozess

N38

1.23-1.30

12.3-13.0

≥876

≥11

≥955

≥12

287-318

36-40

≤80

≥7.5

N40

1.26-1.32

12.6-13.2

≥876

≥11

≥955

≥12

302-334

38-42

≤80

≥7.5

N42

1.29-1.35

12.9-13.5

≥876

≥11

≥955

≥12

318-350

40-44

≤80

≥7.5

N45

1.32-1.38

13.2-13.8

≥876

≥11

≥955

≥12

334-366

42-46

≤80

≥7.5

N48

1.37-1.43

13.7-14.3

≥876

≥11

≥955

≥12

358-390

45-49

≤80

≥7.5

N50

1.40-1.45

14.0-14.5

≥876

≥11

≥955

≥12

374-406

47-51

≤80

≥7.5

N52

1.42-1.48

14.2-14.8

≥836

≥10.5

≥876

≥11

390-422

49-53

≤80

≥7.5

N55

1.46-1.51

14.6-15.1

≥860

≥10.8

≥955

≥12

406-438

51-55

≤80

≥7.5

N38M

1.23-1.30

12.3-13.0

≥915

≥11.5

≥1114

≥14

287-318

36-40

≤100

≥7.5

N40M

1.26-1.32

12.6-13.2

≥939

≥11.8

≥1114

≥14

302-334

38-42

≤100

≥7.5

N42M

1.29-1.35

12.9-13.5

≥963

≥12.1

≥1114

≥14

318-350

40-44

≤100

≥7.5

N45M

1.32-1.38

13.2-13.8

≥987

≥12.4

≥1114

≥14

334-366

42-46

≤100

≥7.5

N48M

1.37-1.43

13.7-14.3

≥1019

≥12.8

≥1114

≥14

358-390

45-49

≤100

≥7.5

N50M

1.40-1.45

14.0-14.5

≥1043

≥13.1

≥1114

≥14

374-406

47-51

≤100

≥7.5

N52M

1.42-1.48

14.2-14.8

≥1059

≥13.3

≥1114

≥14

390-422

49-53

≤100

≥7.5

N54M

1.46-1.51

14.6-15.1

≥995

≥12.5

≥1035

≥13

406-438

51-55

≤100

≥7.5

N35H

1.17-1.24

11.7-12.4

≥876

≥11.0

≥1353

≥17

263-295

33-37

≤120

≥7.5

N38H

1.23-1.30

12.3-13.0

≥915

≥11.5

≥1353

≥17

286-318

36-40

≤120

≥7.5

N40H

1.26-1.32

12.6-13.2

≥939

≥11.8

≥1353

≥17

302-334

38-42

≤120

≥7.5

N42H

1.29-1.35

12.9-13.5

≥963

≥12.1

≥1353

≥17

318-350

40-44

≤120

≥7.5

N45H

1.32-1.38

13.2-13.8

≥987

≥12.4

≥1353

≥17

334-366

42-46

≤120

≥7.5

N48H

1.37-1.43

13.7-14.3

≥1011

≥12.7

≥1353

≥17

358-390

45-49

≤120

≥7.5

N50H

1.40-1.45

14.0-14.5

≥1027

≥12.9

≥1353

≥17

374-406

47-51

≤120

≥7.5

N52H

1.42-1.48

14.2-14.8

≥1059

≥13.3

≥1353

≥17

390-422

49-53

≤120

≥7.5

N33SH

1.14-1.21

11.4-12.1

≥852

≥10.7

≥1592

≥20

247-279

31-35

≤150

≥7.5

N35SH

1.17-1.24

11.7-12.4

≥876

≥11.0

≥1592

≥20

263-295

33-37

≤150

≥7.5

N38SH

1.23-1.29

12.3-12.9

≥915

≥11.5

≥1592

≥20

287-318

36-40

≤150

≥7.5

N40SH

1.26-1.32

12.6-13.2

≥939

≥11.8

≥1592

≥20

302-334

38-42

≤150

≥7.5

N42SH

1.29-1.35

12.9-13.5

≥963

≥12.1

≥1592

≥20

318-350

40-44

≤150

≥7.5

N45SH

1.32-1.38

13.2-13.8

≥987

≥12.4

≥1592

≥20

334-366

42-46

≤150

≥7.5

Fortsetzung folgt

Klasse	Remanenz Induktion		Koerzitivfeldstärke		Intrinsische Koerzitivfeldstärke		Maximal Energie Produkt		Arbeitstemperatur	Dichte
Klasse	Br		HcB		HcJ		(BH)max		Tw	ρ
Klasse	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	℃	g/cm3
N48SH	1.37-1.43	13.7-14.3	≥1011	≥12.7	≥1592	≥20	358-390	45-49	≤150	≥7.5
N50SH	1.40-1.45	14.0-14.5	≥1027	≥12.9	≥1592	≥20	374-406	47-51	≤150	≥7.5
N52SH	1.42-1.48	14.2-14.8	≥1035	≥13	≥1512	≥19	390-422	49-53	≤150	≥7.5
N30UH	1.08-1.13	10.8-11.3	≥796	≥10.0	≥1990	≥25	223-255	28-31	≤180	≥7.5
N33UH	1.14-1.18	11.4-11.8	≥852	≥10.5	≥1990	≥25	247-279	31-35	≤180	≥7.5
N35UH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥1990	≥25	263-295	33-37	≤180	≥7.5
N38UH	1.23-1.29	12.3-12.9	≥915	≥11.5	≥1990	≥25	287-318	36-40	≤180	≥7.5
N40UH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1990	≥25	302-334	38-42	≤180	≥7.5
N42UH	1.28-1.35	12.8-13.5	≥963	≥12.1	≥1990	≥25	310-350	39-44	≤180	≥7.5
N45UH	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1990	≥25	334-366	42-46	≤180	≥7.5
N48UH	1.37-1.42	13.7-14.2	≥1019	≥12.8	≥1910	≥24	358-390	45-49	≤180	≥7.5
N30EH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2388	≥30	223-255	28-32	≤200	≥7.5
N33EH	1.14-1.21	11.4-12.1	≥851	≥10.7	≥2388	≥30	247-279	31-35	≤200	≥7.5
N35EH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥2388	≥30	263-295	33-37	≤200	≥7.5
N38EH	1.23-1.29	12.3-12.9	≥915	≥11.5	≥2388	≥30	287-318	36-40	≤200	≥7.5
N40EH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥2388	≥30	302-334	38-42	≤200	≥7.5
N42EH	1.28-1.35	12.8-13.5	≥963	≥12.1	≥2388	≥30	310-350	39-44	≤200	≥7.5
N45EH	1.33-1.38	13.3-13.8	≥995	≥12.5	≥2308	≥29	334-366	42-46	≤200	≥7.5
N28AH	1.04-1.12	10.4-11.2	≥772	≥9.7	≥2786	≥35	207-239	26-30	≤230	≥7.5
N30AH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2786	≥35	223-255	28-32	≤230	≥7.5
N33AH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥2786	≥35	247-279	31-35	≤230	≥7.5
N35AH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥2786	≥35	263-295	33-37	≤230	≥7.5
N38AH	1.23-1.27	12.3-12.7	≥923	≥11.6	≥2786	≥35	287-318	36-40	≤230	≥7.5
N40AH	1.26-1.31	12.6-13.1	≥939	≥11.8	≥2628	≥33	302-334	38-42	≤230	≥7.5
N42AH	1.29-1.35	12.9-13.5	≥955	≥12.0	≥2628	≥33	318-350	40-44	≤230	≥7.5
Fortsetzung folgt

Klasse	Remanence Induction		Koerzitivfeldstärke		Intrinsische Koerzitivfeldstärke		Maximal Energie Produkt		Arbeitstemperatur	Dichte
	Br		HcB		HcJ		(BH)max		Tw	ρ
	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	℃	g/cm3
Diffusionsprozess
G48SH	1.37-1.42	13.7-14.2	≥1011	≥13	≥1592	≥20	358-390	45-49	≤150	≥7.5
G50SH	1.40-1.45	14.0-14.5	≥1027	≥13.2	≥1592	≥20	374-406	47-51	≤150	≥7.5
G52SH	1.42-1.48	14.2-14.8	≥1067	≥13.4	≥1592	≥20	390-422	49-53	≤150	≥7.5
G55SH	1.46-1.51	14.6-15.1	≥1083	≥13.6	≥1592	≥20	406-438	51-55	≤150	≥7.5
G45UH	1.33-1.38	13.3-13.8	≥978	≥12.4	≥1990	≥25	334-366	42-46	≤180	≥7.5
G48UH	1.37-1.42	13.7-14.2	≥1027	≥12.9	≥1990	≥25	358-390	45-49	≤180	≥7.5
G50UH	1.40-1.45	14.0-14.5	≥1051	≥13.2	≥1990	≥25	374-406	47-51	≤180	≥7.5
G52UH	1.42-1.48	14.2-14.8	≥1067	≥13.4	≥1990	≥25	390-422	49-53	≤180	≥7.5
G54UH	1.46-1.51	14.6-15.1	≥1075	≥13.5	≥1990	≥25	406-438	51-55	≤180	≥7.5
G40EH	1.26-1.31	12.6-13.1	≥955	≥12.0	≥2388	≥30	302-334	38-42	≤200	≥7.5
G44EH	1.29-1.35	12.9-13.5	≥971	≥12.2	≥2388	≥30	318-350	40-44	≤200	≥7.5
G46EH	1.33-1.38	13.3-13.8	≥1011	≥12.7	≥2388	≥30	334-366	42-46	≤200	≥7.5
G48EH	1.37-1.42	13.7-14.2	≥1027	≥12.9	≥2388	≥30	358-390	45-49	≤200	≥7.5
G50EH	1.40-1.45	14.0-14.5	≥1051	≥13.2	≥2308	≥29	374-406	47-51	≤200	≥7.5

PRODUCT DESCRIPTION

Arc Motor Magnet Pure Permanent Magnet is a high-performance permanent magnet material designed specifically for motors. This kind of magnet is made of rare earth permanent magnet materials (such as neodymium iron boron NdFeB), which has extremely high magnetic energy product and coercive force, and can generate a strong magnetic field in a small volume.

The main features of permanent magnet arc motor magnets include:

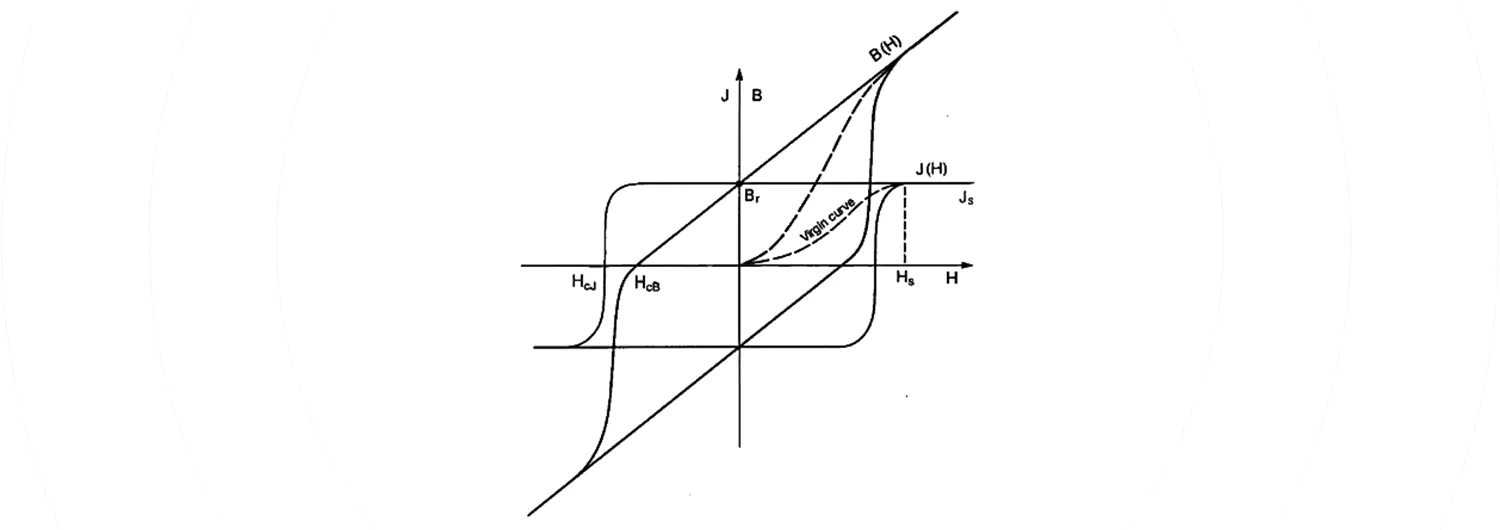

High remanence (Br): High remanence means that the magnet can still maintain strong magnetic properties after the external magnetic field is removed.
High coercive force (Hc): High coercive force means that the magnet has strong ability to resist external magnetic field interference and is not easy to demagnetize.
High magnetic energy product (BHmax): High magnetic energy product means that the magnet can store more magnetic energy in a smaller volume.
Good temperature stability: It can still maintain good magnetic properties in high temperature environments.

Application areas
Permanent magnet arc motor magnets are widely used in various motors, especially where high performance, efficiency and reliability are required. The following are its main application areas:

New energy vehicles: In the motors of new energy vehicles, permanent magnet arc motor magnets are used to generate driving force and improve the vehicle's cruising range and performance.
Industrial motors: In the fields of industrial automation, robots, CNC machine tools, etc., permanent magnet arc motor magnets are used to drive various equipment and improve production efficiency.
Home appliances: In household appliances such as washing machines, air conditioners, electric fans, etc., permanent magnet arc motor magnets are used to drive motors to achieve energy saving, low noise and long life.
Aerospace: In the aerospace field, permanent magnet arc motor magnets are used to drive various precision instruments and equipment to ensure their stable operation in extreme environments.
