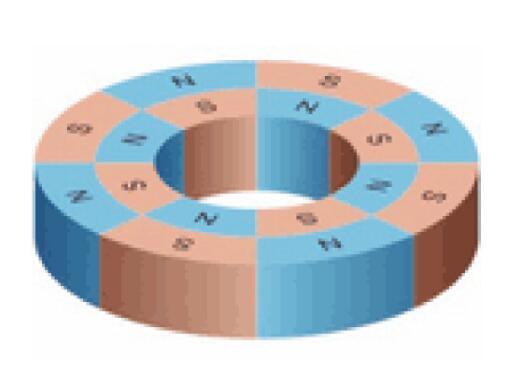

Multipole ring magnets
Multipole ring magnets are a more desirable solution to the permanent magnet motors and magnetic coupling devices in comparison with conventional splicing several arc magnets. It can be classified to isotropic type and anisotropic type. Isotropic type is generally refers to ring-shaped bonded magnets with multipole. Anisotropic type, or multipole sintered ring magnet, has always been touted as a high-end product.
Keyword:
Multipole ring magnets
Classification:
Magnet Assemblies
Multipole ring magnets are a more desirable solution to the permanent magnet motors and magnetic coupling devices in comparison with conventional splicing several arc magnets. It can be classified to isotropic type and anisotropic type. Isotropic type is generally refers to ring-shaped bonded magnets with multipole. Anisotropic type, or multipole sintered ring magnet, has always been touted as a high-end product.
Multipole sintered ring magnet manufactured by multipole orientation are also known as polar anisotropic magnets. Orientation magnetic field of polar anisotropic magnets is generated by pulser coil. Its flux lines enter adjacent S polars from N polars and exhibit a curve distribution, thereby magnetic powder also present curve arrangement. Magnetic field strength waveform of polar anisotropic magnets is close to sinusoidal and very advantageous to the motor applications.
|
|
Existing mold |
Max. |
|||||||||
|
DiameterΦ |
6 |
8 |
8.2 |
8.8 |
10 |
12 |
12.8 |
16.5 |
19 |
37.6 |
80 |
|
Poles |
4 |
4 |
4 |
8 |
4 |
4 |
8 |
4 |
8 |
20 |
40 |
