Customized round counterbore pure permanent magnet

Customized Round Counterbore Pure Permanent Magnet is a customized pure permanent magnet product designed for high-precision applications. The magnet is made of high-quality permanent magnet material, precision-processed and uniquely designed to ensure strong magnetic force and stable performance. Its unique round counter-boring design makes installation more convenient and suitable for various special demand scenarios.

Keyword:

Customized round counterbore pure permanent magnet

Classification:

Pure Permanent Magnet

Inquiry

Hot Products

Grade

Remanence Induction

Coercivity

Intrinsic Coercivity

๋Maximum Energy
product

Working
Temperature

Density

HcB

HcJ

(BH)max

KGs

KA/m

KOe

KA/m

KOe

KJ/m³

MGOe

℃

g/cm3

General Process

N38

1.23-1.30

12.3-13.0

≥876

≥11

≥955

≥12

287-318

36-40

≤80

≥7.5

N40

1.26-1.32

12.6-13.2

≥876

≥11

≥955

≥12

302-334

38-42

≤80

≥7.5

N42

1.29-1.35

12.9-13.5

≥876

≥11

≥955

≥12

318-350

40-44

≤80

≥7.5

N45

1.32-1.38

13.2-13.8

≥876

≥11

≥955

≥12

334-366

42-46

≤80

≥7.5

N48

1.37-1.43

13.7-14.3

≥876

≥11

≥955

≥12

358-390

45-49

≤80

≥7.5

N50

1.40-1.45

14.0-14.5

≥876

≥11

≥955

≥12

374-406

47-51

≤80

≥7.5

N52

1.42-1.48

14.2-14.8

≥836

≥10.5

≥876

≥11

390-422

49-53

≤80

≥7.5

N55

1.46-1.51

14.6-15.1

≥860

≥10.8

≥955

≥12

406-438

51-55

≤80

≥7.5

N38M

1.23-1.30

12.3-13.0

≥915

≥11.5

≥1114

≥14

287-318

36-40

≤100

≥7.5

N40M

1.26-1.32

12.6-13.2

≥939

≥11.8

≥1114

≥14

302-334

38-42

≤100

≥7.5

N42M

1.29-1.35

12.9-13.5

≥963

≥12.1

≥1114

≥14

318-350

40-44

≤100

≥7.5

N45M

1.32-1.38

13.2-13.8

≥987

≥12.4

≥1114

≥14

334-366

42-46

≤100

≥7.5

N48M

1.37-1.43

13.7-14.3

≥1019

≥12.8

≥1114

≥14

358-390

45-49

≤100

≥7.5

N50M

1.40-1.45

14.0-14.5

≥1043

≥13.1

≥1114

≥14

374-406

47-51

≤100

≥7.5

N52M

1.42-1.48

14.2-14.8

≥1059

≥13.3

≥1114

≥14

390-422

49-53

≤100

≥7.5

N54M

1.46-1.51

14.6-15.1

≥995

≥12.5

≥1035

≥13

406-438

51-55

≤100

≥7.5

N35H

1.17-1.24

11.7-12.4

≥876

≥11.0

≥1353

≥17

263-295

33-37

≤120

≥7.5

N38H

1.23-1.30

12.3-13.0

≥915

≥11.5

≥1353

≥17

286-318

36-40

≤120

≥7.5

N40H

1.26-1.32

12.6-13.2

≥939

≥11.8

≥1353

≥17

302-334

38-42

≤120

≥7.5

N42H

1.29-1.35

12.9-13.5

≥963

≥12.1

≥1353

≥17

318-350

40-44

≤120

≥7.5

N45H

1.32-1.38

13.2-13.8

≥987

≥12.4

≥1353

≥17

334-366

42-46

≤120

≥7.5

N48H

1.37-1.43

13.7-14.3

≥1011

≥12.7

≥1353

≥17

358-390

45-49

≤120

≥7.5

N50H

1.40-1.45

14.0-14.5

≥1027

≥12.9

≥1353

≥17

374-406

47-51

≤120

≥7.5

N52H

1.42-1.48

14.2-14.8

≥1059

≥13.3

≥1353

≥17

390-422

49-53

≤120

≥7.5

N33SH

1.14-1.21

11.4-12.1

≥852

≥10.7

≥1592

≥20

247-279

31-35

≤150

≥7.5

N35SH

1.17-1.24

11.7-12.4

≥876

≥11.0

≥1592

≥20

263-295

33-37

≤150

≥7.5

N38SH

1.23-1.29

12.3-12.9

≥915

≥11.5

≥1592

≥20

287-318

36-40

≤150

≥7.5

N40SH

1.26-1.32

12.6-13.2

≥939

≥11.8

≥1592

≥20

302-334

38-42

≤150

≥7.5

N42SH

1.29-1.35

12.9-13.5

≥963

≥12.1

≥1592

≥20

318-350

40-44

≤150

≥7.5

N45SH

1.32-1.38

13.2-13.8

≥987

≥12.4

≥1592

≥20

334-366

42-46

≤150

≥7.5

to be conRnued

Grade	Remanence Induction		Coercivity		Intrinsic Coercivity		Maximum Energy product		WorkingTemperature	Density
Grade	Br		HcB		HcJ		(BH)max		Tw	ρ
Grade	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	℃	g/cm3
N48SH	1.37-1.43	13.7-14.3	≥1011	≥12.7	≥1592	≥20	358-390	45-49	≤150	≥7.5
N50SH	1.40-1.45	14.0-14.5	≥1027	≥12.9	≥1592	≥20	374-406	47-51	≤150	≥7.5
N52SH	1.42-1.48	14.2-14.8	≥1035	≥13	≥1512	≥19	390-422	49-53	≤150	≥7.5
N30UH	1.08-1.13	10.8-11.3	≥796	≥10.0	≥1990	≥25	223-255	28-31	≤180	≥7.5
N33UH	1.14-1.18	11.4-11.8	≥852	≥10.5	≥1990	≥25	247-279	31-35	≤180	≥7.5
N35UH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥1990	≥25	263-295	33-37	≤180	≥7.5
N38UH	1.23-1.29	12.3-12.9	≥915	≥11.5	≥1990	≥25	287-318	36-40	≤180	≥7.5
N40UH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1990	≥25	302-334	38-42	≤180	≥7.5
N42UH	1.28-1.35	12.8-13.5	≥963	≥12.1	≥1990	≥25	310-350	39-44	≤180	≥7.5
N45UH	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1990	≥25	334-366	42-46	≤180	≥7.5
N48UH	1.37-1.42	13.7-14.2	≥1019	≥12.8	≥1910	≥24	358-390	45-49	≤180	≥7.5
N30EH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2388	≥30	223-255	28-32	≤200	≥7.5
N33EH	1.14-1.21	11.4-12.1	≥851	≥10.7	≥2388	≥30	247-279	31-35	≤200	≥7.5
N35EH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥2388	≥30	263-295	33-37	≤200	≥7.5
N38EH	1.23-1.29	12.3-12.9	≥915	≥11.5	≥2388	≥30	287-318	36-40	≤200	≥7.5
N40EH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥2388	≥30	302-334	38-42	≤200	≥7.5
N42EH	1.28-1.35	12.8-13.5	≥963	≥12.1	≥2388	≥30	310-350	39-44	≤200	≥7.5
N45EH	1.33-1.38	13.3-13.8	≥995	≥12.5	≥2308	≥29	334-366	42-46	≤200	≥7.5
N28AH	1.04-1.12	10.4-11.2	≥772	≥9.7	≥2786	≥35	207-239	26-30	≤230	≥7.5
N30AH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2786	≥35	223-255	28-32	≤230	≥7.5
N33AH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥2786	≥35	247-279	31-35	≤230	≥7.5
N35AH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥2786	≥35	263-295	33-37	≤230	≥7.5
N38AH	1.23-1.27	12.3-12.7	≥923	≥11.6	≥2786	≥35	287-318	36-40	≤230	≥7.5
N40AH	1.26-1.31	12.6-13.1	≥939	≥11.8	≥2628	≥33	302-334	38-42	≤230	≥7.5
N42AH	1.29-1.35	12.9-13.5	≥955	≥12.0	≥2628	≥33	318-350	40-44	≤230	≥7.5
to be conRnued

Grade	Remanence Induction		Coercivity		Intrinsic Coercivity		๋Maximum Energy product		Working Temperature	Density
	Br		HcB		HcJ		(BH)max		Tw	ρ
	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	℃	g/cm3
Diffusion Process
G48SH	1.37-1.42	13.7-14.2	≥1011	≥13	≥1592	≥20	358-390	45-49	≤150	≥7.5
G50SH	1.40-1.45	14.0-14.5	≥1027	≥13.2	≥1592	≥20	374-406	47-51	≤150	≥7.5
G52SH	1.42-1.48	14.2-14.8	≥1067	≥13.4	≥1592	≥20	390-422	49-53	≤150	≥7.5
G55SH	1.46-1.51	14.6-15.1	≥1083	≥13.6	≥1592	≥20	406-438	51-55	≤150	≥7.5
G45UH	1.33-1.38	13.3-13.8	≥978	≥12.4	≥1990	≥25	334-366	42-46	≤180	≥7.5
G48UH	1.37-1.42	13.7-14.2	≥1027	≥12.9	≥1990	≥25	358-390	45-49	≤180	≥7.5
G50UH	1.40-1.45	14.0-14.5	≥1051	≥13.2	≥1990	≥25	374-406	47-51	≤180	≥7.5
G52UH	1.42-1.48	14.2-14.8	≥1067	≥13.4	≥1990	≥25	390-422	49-53	≤180	≥7.5
G54UH	1.46-1.51	14.6-15.1	≥1075	≥13.5	≥1990	≥25	406-438	51-55	≤180	≥7.5
G40EH	1.26-1.31	12.6-13.1	≥955	≥12.0	≥2388	≥30	302-334	38-42	≤200	≥7.5
G44EH	1.29-1.35	12.9-13.5	≥971	≥12.2	≥2388	≥30	318-350	40-44	≤200	≥7.5
G46EH	1.33-1.38	13.3-13.8	≥1011	≥12.7	≥2388	≥30	334-366	42-46	≤200	≥7.5
G48EH	1.37-1.42	13.7-14.2	≥1027	≥12.9	≥2388	≥30	358-390	45-49	≤200	≥7.5
G50EH	1.40-1.45	14.0-14.5	≥1051	≥13.2	≥2308	≥29	374-406	47-51	≤200	≥7.5

PRODUCT DESCRIPTION

Customized Round Counterbore Pure Permanent Magnet

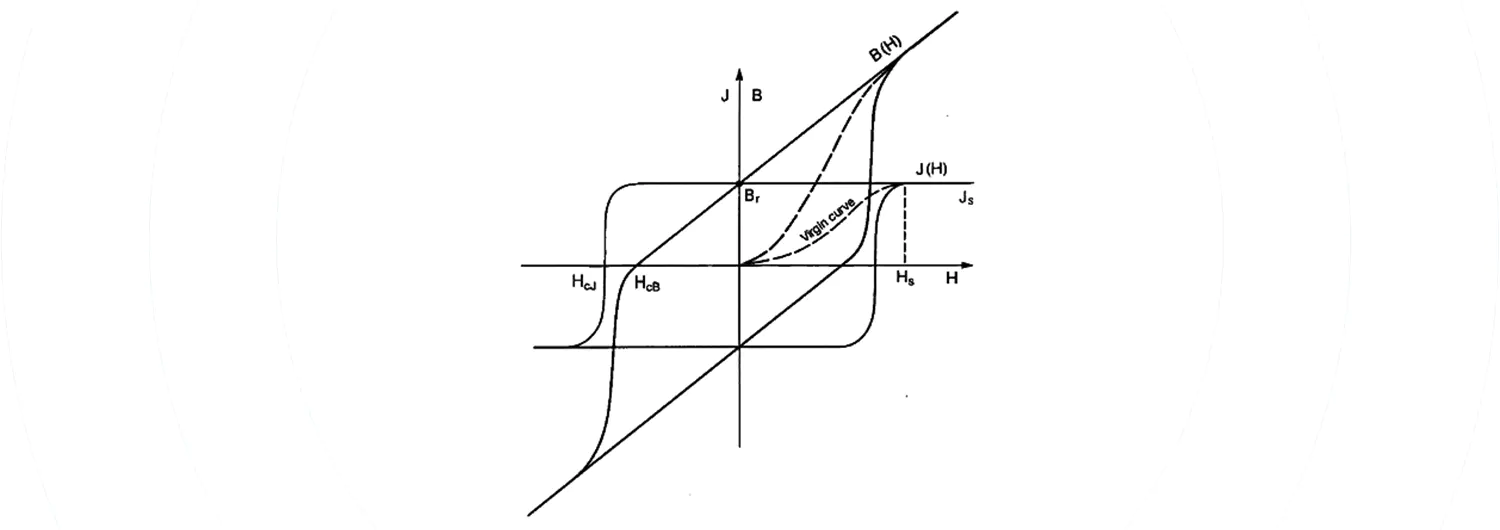

Remanence Br: After magnetization to technical saturation, the residual magnetic induction intensity retained by the external magnetic field is removed to ensure the durability and stability of the magnetic force.
Coercive force Hc: After magnetization to technical saturation, the reverse magnetic field intensity required to reduce the magnetic induction intensity to zero, with high coercive force, ensuring the stability and anti-demagnetization ability of the magnetism.
Magnetic energy product BH: represents the magnetic energy density established by the magnet in the air gap space, that is, the static magnetic energy per unit volume of the air gap, with high magnetic energy product, ensuring the strength and durability of the magnetic force.

Application scenarios and fields:

Scientific research experiments: In the fields of physics, materials science, etc., this customized pure permanent magnet product can provide a stable and strong magnetic field environment to meet the strict requirements of scientific research experiments for magnetic field accuracy.
High-end manufacturing: In the fields of precision machinery, automation equipment, etc., its unique circular counter-boring design and high-precision processing make it an ideal choice for key components, improving the performance and stability of equipment.
Medical devices: In medical devices such as magnetic resonance imaging (MRI) equipment and magnetic navigation, its stable magnetism and high coercivity can ensure the accuracy and reliability of medical devices.
Wind turbines, maglev trains: In the field of high-tech equipment, this pure permanent magnet product can provide stable and strong magnetic field support to ensure the normal operation and high efficiency of the equipment.
