Shaped hole countersunk hole pure permanent magnet

Shaped Hole Countersunk Hole Pure Permanent Magnet is made of high-quality pure permanent magnet material and is precisely processed. The product has excellent magnetic properties, a unique shape, and a countersunk hole design for easy installation. Whether it is used for motors, sensors or other precision equipment, it can provide stable and reliable magnetic support.

Keyword:

Shaped hole countersunk hole pure permanent magnet

Classification:

Pure Permanent Magnet

Inquiry

Hot Products

Grade

Remanence Induction

Coercivity

Intrinsic Coercivity

๋Maximum Energy
product

Working
Temperature

Density

HcB

HcJ

(BH)max

KGs

KA/m

KOe

KA/m

KOe

KJ/m³

MGOe

℃

g/cm3

General Process

N38

1.23-1.30

12.3-13.0

≥876

≥11

≥955

≥12

287-318

36-40

≤80

≥7.5

N40

1.26-1.32

12.6-13.2

≥876

≥11

≥955

≥12

302-334

38-42

≤80

≥7.5

N42

1.29-1.35

12.9-13.5

≥876

≥11

≥955

≥12

318-350

40-44

≤80

≥7.5

N45

1.32-1.38

13.2-13.8

≥876

≥11

≥955

≥12

334-366

42-46

≤80

≥7.5

N48

1.37-1.43

13.7-14.3

≥876

≥11

≥955

≥12

358-390

45-49

≤80

≥7.5

N50

1.40-1.45

14.0-14.5

≥876

≥11

≥955

≥12

374-406

47-51

≤80

≥7.5

N52

1.42-1.48

14.2-14.8

≥836

≥10.5

≥876

≥11

390-422

49-53

≤80

≥7.5

N55

1.46-1.51

14.6-15.1

≥860

≥10.8

≥955

≥12

406-438

51-55

≤80

≥7.5

N38M

1.23-1.30

12.3-13.0

≥915

≥11.5

≥1114

≥14

287-318

36-40

≤100

≥7.5

N40M

1.26-1.32

12.6-13.2

≥939

≥11.8

≥1114

≥14

302-334

38-42

≤100

≥7.5

N42M

1.29-1.35

12.9-13.5

≥963

≥12.1

≥1114

≥14

318-350

40-44

≤100

≥7.5

N45M

1.32-1.38

13.2-13.8

≥987

≥12.4

≥1114

≥14

334-366

42-46

≤100

≥7.5

N48M

1.37-1.43

13.7-14.3

≥1019

≥12.8

≥1114

≥14

358-390

45-49

≤100

≥7.5

N50M

1.40-1.45

14.0-14.5

≥1043

≥13.1

≥1114

≥14

374-406

47-51

≤100

≥7.5

N52M

1.42-1.48

14.2-14.8

≥1059

≥13.3

≥1114

≥14

390-422

49-53

≤100

≥7.5

N54M

1.46-1.51

14.6-15.1

≥995

≥12.5

≥1035

≥13

406-438

51-55

≤100

≥7.5

N35H

1.17-1.24

11.7-12.4

≥876

≥11.0

≥1353

≥17

263-295

33-37

≤120

≥7.5

N38H

1.23-1.30

12.3-13.0

≥915

≥11.5

≥1353

≥17

286-318

36-40

≤120

≥7.5

N40H

1.26-1.32

12.6-13.2

≥939

≥11.8

≥1353

≥17

302-334

38-42

≤120

≥7.5

N42H

1.29-1.35

12.9-13.5

≥963

≥12.1

≥1353

≥17

318-350

40-44

≤120

≥7.5

N45H

1.32-1.38

13.2-13.8

≥987

≥12.4

≥1353

≥17

334-366

42-46

≤120

≥7.5

N48H

1.37-1.43

13.7-14.3

≥1011

≥12.7

≥1353

≥17

358-390

45-49

≤120

≥7.5

N50H

1.40-1.45

14.0-14.5

≥1027

≥12.9

≥1353

≥17

374-406

47-51

≤120

≥7.5

N52H

1.42-1.48

14.2-14.8

≥1059

≥13.3

≥1353

≥17

390-422

49-53

≤120

≥7.5

N33SH

1.14-1.21

11.4-12.1

≥852

≥10.7

≥1592

≥20

247-279

31-35

≤150

≥7.5

N35SH

1.17-1.24

11.7-12.4

≥876

≥11.0

≥1592

≥20

263-295

33-37

≤150

≥7.5

N38SH

1.23-1.29

12.3-12.9

≥915

≥11.5

≥1592

≥20

287-318

36-40

≤150

≥7.5

N40SH

1.26-1.32

12.6-13.2

≥939

≥11.8

≥1592

≥20

302-334

38-42

≤150

≥7.5

N42SH

1.29-1.35

12.9-13.5

≥963

≥12.1

≥1592

≥20

318-350

40-44

≤150

≥7.5

N45SH

1.32-1.38

13.2-13.8

≥987

≥12.4

≥1592

≥20

334-366

42-46

≤150

≥7.5

to be conRnued

Grade	Remanence Induction		Coercivity		Intrinsic Coercivity		Maximum Energy product		WorkingTemperature	Density
Grade	Br		HcB		HcJ		(BH)max		Tw	ρ
Grade	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	℃	g/cm3
N48SH	1.37-1.43	13.7-14.3	≥1011	≥12.7	≥1592	≥20	358-390	45-49	≤150	≥7.5
N50SH	1.40-1.45	14.0-14.5	≥1027	≥12.9	≥1592	≥20	374-406	47-51	≤150	≥7.5
N52SH	1.42-1.48	14.2-14.8	≥1035	≥13	≥1512	≥19	390-422	49-53	≤150	≥7.5
N30UH	1.08-1.13	10.8-11.3	≥796	≥10.0	≥1990	≥25	223-255	28-31	≤180	≥7.5
N33UH	1.14-1.18	11.4-11.8	≥852	≥10.5	≥1990	≥25	247-279	31-35	≤180	≥7.5
N35UH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥1990	≥25	263-295	33-37	≤180	≥7.5
N38UH	1.23-1.29	12.3-12.9	≥915	≥11.5	≥1990	≥25	287-318	36-40	≤180	≥7.5
N40UH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1990	≥25	302-334	38-42	≤180	≥7.5
N42UH	1.28-1.35	12.8-13.5	≥963	≥12.1	≥1990	≥25	310-350	39-44	≤180	≥7.5
N45UH	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1990	≥25	334-366	42-46	≤180	≥7.5
N48UH	1.37-1.42	13.7-14.2	≥1019	≥12.8	≥1910	≥24	358-390	45-49	≤180	≥7.5
N30EH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2388	≥30	223-255	28-32	≤200	≥7.5
N33EH	1.14-1.21	11.4-12.1	≥851	≥10.7	≥2388	≥30	247-279	31-35	≤200	≥7.5
N35EH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥2388	≥30	263-295	33-37	≤200	≥7.5
N38EH	1.23-1.29	12.3-12.9	≥915	≥11.5	≥2388	≥30	287-318	36-40	≤200	≥7.5
N40EH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥2388	≥30	302-334	38-42	≤200	≥7.5
N42EH	1.28-1.35	12.8-13.5	≥963	≥12.1	≥2388	≥30	310-350	39-44	≤200	≥7.5
N45EH	1.33-1.38	13.3-13.8	≥995	≥12.5	≥2308	≥29	334-366	42-46	≤200	≥7.5
N28AH	1.04-1.12	10.4-11.2	≥772	≥9.7	≥2786	≥35	207-239	26-30	≤230	≥7.5
N30AH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2786	≥35	223-255	28-32	≤230	≥7.5
N33AH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥2786	≥35	247-279	31-35	≤230	≥7.5
N35AH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥2786	≥35	263-295	33-37	≤230	≥7.5
N38AH	1.23-1.27	12.3-12.7	≥923	≥11.6	≥2786	≥35	287-318	36-40	≤230	≥7.5
N40AH	1.26-1.31	12.6-13.1	≥939	≥11.8	≥2628	≥33	302-334	38-42	≤230	≥7.5
N42AH	1.29-1.35	12.9-13.5	≥955	≥12.0	≥2628	≥33	318-350	40-44	≤230	≥7.5
to be conRnued

Grade	Remanence Induction		Coercivity		ٖIntrinsic Coercivity		๋Maximum Energy product		Working Temperature	Density
	Br		HcB		HcJ		(BH)max		Tw	ρ
	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	℃	g/cm3
Diffusion Process
G48SH	1.37-1.42	13.7-14.2	≥1011	≥13	≥1592	≥20	358-390	45-49	≤150	≥7.5
G50SH	1.40-1.45	14.0-14.5	≥1027	≥13.2	≥1592	≥20	374-406	47-51	≤150	≥7.5
G52SH	1.42-1.48	14.2-14.8	≥1067	≥13.4	≥1592	≥20	390-422	49-53	≤150	≥7.5
G55SH	1.46-1.51	14.6-15.1	≥1083	≥13.6	≥1592	≥20	406-438	51-55	≤150	≥7.5
G45UH	1.33-1.38	13.3-13.8	≥978	≥12.4	≥1990	≥25	334-366	42-46	≤180	≥7.5
G48UH	1.37-1.42	13.7-14.2	≥1027	≥12.9	≥1990	≥25	358-390	45-49	≤180	≥7.5
G50UH	1.40-1.45	14.0-14.5	≥1051	≥13.2	≥1990	≥25	374-406	47-51	≤180	≥7.5
G52UH	1.42-1.48	14.2-14.8	≥1067	≥13.4	≥1990	≥25	390-422	49-53	≤180	≥7.5
G54UH	1.46-1.51	14.6-15.1	≥1075	≥13.5	≥1990	≥25	406-438	51-55	≤180	≥7.5
G40EH	1.26-1.31	12.6-13.1	≥955	≥12.0	≥2388	≥30	302-334	38-42	≤200	≥7.5
G44EH	1.29-1.35	12.9-13.5	≥971	≥12.2	≥2388	≥30	318-350	40-44	≤200	≥7.5
G46EH	1.33-1.38	13.3-13.8	≥1011	≥12.7	≥2388	≥30	334-366	42-46	≤200	≥7.5
G48EH	1.37-1.42	13.7-14.2	≥1027	≥12.9	≥2388	≥30	358-390	45-49	≤200	≥7.5
G50EH	1.40-1.45	14.0-14.5	≥1051	≥13.2	≥2308	≥29	374-406	47-51	≤200	≥7.5

PRODUCT DESCRIPTION

Shaped Hole Countersunk Hole Pure Permanent Magnet

Product parameters:

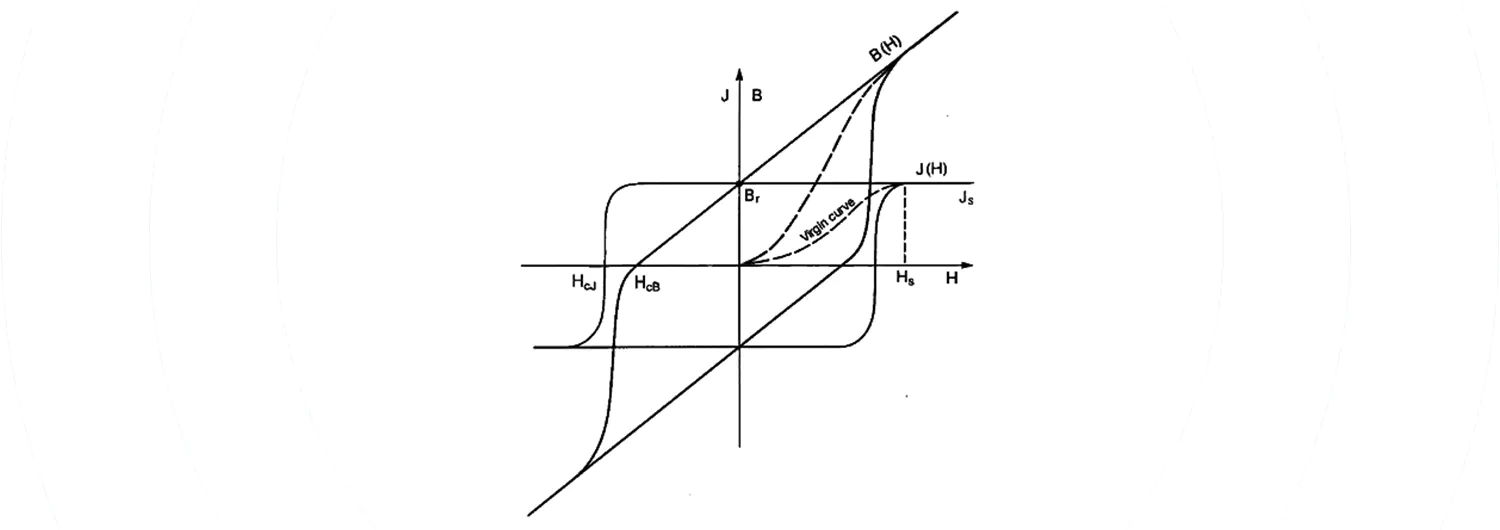

Remanence Br: After strict magnetization to technical saturation, our products have excellent residual magnetic induction intensity, ensuring long-term stable magnetic properties.
Coercive force Hc: Our products have extremely high magnetic coercive force and can maintain a stable magnetic field in various environments.
Magnetic energy product BH: The excellent magnetic energy product enables the product to establish a strong magnetic energy density in the air gap space to meet various application requirements.

Application scenarios and fields:

Motors and generators: As key components of motors and generators, our products can provide stable and reliable magnetic fields to improve the efficiency and performance of equipment.
Medical devices: Such as magnetic resonance imaging (MRI) equipment, magnetic navigation, etc., our products provide strong support for the medical field with their excellent magnetic properties.
Automotive industry: In key components such as automotive generators, motors and sensors, our products play an important role and help the development of the automotive industry.
Other high-tech equipment: In addition, our products are also widely used in high-tech equipment such as wind turbines, maglev trains, aerospace vehicles, etc., showing its broad application prospects.
