Ring super strong motor sensor pure permanent magnet

Ring Super Strong Motor Sensor Pure Permanent Magnet is an innovative product that combines high performance and durability. It uses top-level pure permanent magnet technology to provide stable and powerful power output for the motor. This sensor is precisely designed to accurately sense and control the operating status of the motor, ensuring that every operation is accurate and correct.

Keyword:

Ring super strong motor sensor pure permanent magnet

Classification:

Pure Permanent Magnet

Inquiry

Hot Products

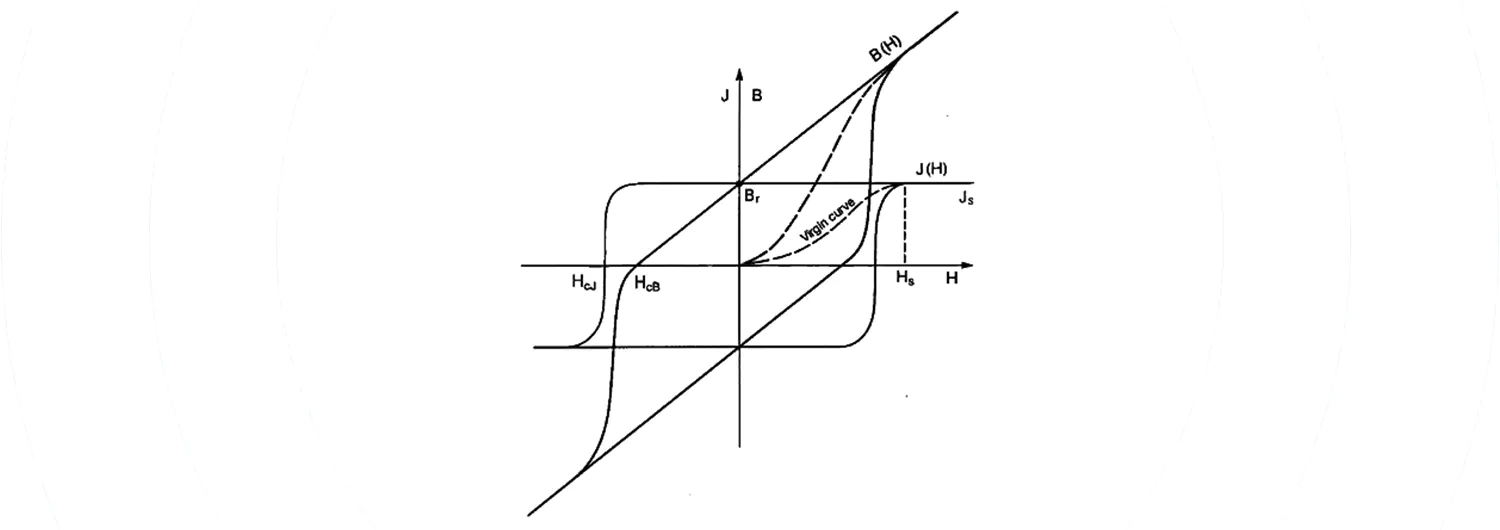

Grade	Remanence Induction		Coercivity		Intrinsic Coercivity		๋Maximum Energy product		Working Temperature	Density
	Br		HcB		HcJ		(BH)max		Tw	ρ
	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	℃	g/cm3
General Process
N38	1.23-1.30	12.3-13.0	≥876	≥11	≥955	≥12	287-318	36-40	≤80	≥7.5
N40	1.26-1.32	12.6-13.2	≥876	≥11	≥955	≥12	302-334	38-42	≤80	≥7.5
N42	1.29-1.35	12.9-13.5	≥876	≥11	≥955	≥12	318-350	40-44	≤80	≥7.5
N45	1.32-1.38	13.2-13.8	≥876	≥11	≥955	≥12	334-366	42-46	≤80	≥7.5
N48	1.37-1.43	13.7-14.3	≥876	≥11	≥955	≥12	358-390	45-49	≤80	≥7.5
N50	1.40-1.45	14.0-14.5	≥876	≥11	≥955	≥12	374-406	47-51	≤80	≥7.5
N52	1.42-1.48	14.2-14.8	≥836	≥10.5	≥876	≥11	390-422	49-53	≤80	≥7.5
N55	1.46-1.51	14.6-15.1	≥860	≥10.8	≥955	≥12	406-438	51-55	≤80	≥7.5
N38M	1.23-1.30	12.3-13.0	≥915	≥11.5	≥1114	≥14	287-318	36-40	≤100	≥7.5
N40M	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1114	≥14	302-334	38-42	≤100	≥7.5
N42M	1.29-1.35	12.9-13.5	≥963	≥12.1	≥1114	≥14	318-350	40-44	≤100	≥7.5
N45M	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1114	≥14	334-366	42-46	≤100	≥7.5
N48M	1.37-1.43	13.7-14.3	≥1019	≥12.8	≥1114	≥14	358-390	45-49	≤100	≥7.5
N50M	1.40-1.45	14.0-14.5	≥1043	≥13.1	≥1114	≥14	374-406	47-51	≤100	≥7.5
N52M	1.42-1.48	14.2-14.8	≥1059	≥13.3	≥1114	≥14	390-422	49-53	≤100	≥7.5
N54M	1.46-1.51	14.6-15.1	≥995	≥12.5	≥1035	≥13	406-438	51-55	≤100	≥7.5
N35H	1.17-1.24	11.7-12.4	≥876	≥11.0	≥1353	≥17	263-295	33-37	≤120	≥7.5
N38H	1.23-1.30	12.3-13.0	≥915	≥11.5	≥1353	≥17	286-318	36-40	≤120	≥7.5
N40H	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1353	≥17	302-334	38-42	≤120	≥7.5
N42H	1.29-1.35	12.9-13.5	≥963	≥12.1	≥1353	≥17	318-350	40-44	≤120	≥7.5
N45H	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1353	≥17	334-366	42-46	≤120	≥7.5
N48H	1.37-1.43	13.7-14.3	≥1011	≥12.7	≥1353	≥17	358-390	45-49	≤120	≥7.5
N50H	1.40-1.45	14.0-14.5	≥1027	≥12.9	≥1353	≥17	374-406	47-51	≤120	≥7.5
N52H	1.42-1.48	14.2-14.8	≥1059	≥13.3	≥1353	≥17	390-422	49-53	≤120	≥7.5
N33SH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥1592	≥20	247-279	31-35	≤150	≥7.5
N35SH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥1592	≥20	263-295	33-37	≤150	≥7.5
N38SH	1.23-1.29	12.3-12.9	≥915	≥11.5	≥1592	≥20	287-318	36-40	≤150	≥7.5
N40SH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1592	≥20	302-334	38-42	≤150	≥7.5
N42SH	1.29-1.35	12.9-13.5	≥963	≥12.1	≥1592	≥20	318-350	40-44	≤150	≥7.5
N45SH	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1592	≥20	334-366	42-46	≤150	≥7.5
to be conRnued

Grade	Remanence Induction		Coercivity		Intrinsic Coercivity		Maximum Energy product		WorkingTemperature	Density
Grade	Br		HcB		HcJ		(BH)max		Tw	ρ
Grade	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	℃	g/cm3
N48SH	1.37-1.43	13.7-14.3	≥1011	≥12.7	≥1592	≥20	358-390	45-49	≤150	≥7.5
N50SH	1.40-1.45	14.0-14.5	≥1027	≥12.9	≥1592	≥20	374-406	47-51	≤150	≥7.5
N52SH	1.42-1.48	14.2-14.8	≥1035	≥13	≥1512	≥19	390-422	49-53	≤150	≥7.5
N30UH	1.08-1.13	10.8-11.3	≥796	≥10.0	≥1990	≥25	223-255	28-31	≤180	≥7.5
N33UH	1.14-1.18	11.4-11.8	≥852	≥10.5	≥1990	≥25	247-279	31-35	≤180	≥7.5
N35UH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥1990	≥25	263-295	33-37	≤180	≥7.5
N38UH	1.23-1.29	12.3-12.9	≥915	≥11.5	≥1990	≥25	287-318	36-40	≤180	≥7.5
N40UH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1990	≥25	302-334	38-42	≤180	≥7.5
N42UH	1.28-1.35	12.8-13.5	≥963	≥12.1	≥1990	≥25	310-350	39-44	≤180	≥7.5
N45UH	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1990	≥25	334-366	42-46	≤180	≥7.5
N48UH	1.37-1.42	13.7-14.2	≥1019	≥12.8	≥1910	≥24	358-390	45-49	≤180	≥7.5
N30EH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2388	≥30	223-255	28-32	≤200	≥7.5
N33EH	1.14-1.21	11.4-12.1	≥851	≥10.7	≥2388	≥30	247-279	31-35	≤200	≥7.5
N35EH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥2388	≥30	263-295	33-37	≤200	≥7.5
N38EH	1.23-1.29	12.3-12.9	≥915	≥11.5	≥2388	≥30	287-318	36-40	≤200	≥7.5
N40EH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥2388	≥30	302-334	38-42	≤200	≥7.5
N42EH	1.28-1.35	12.8-13.5	≥963	≥12.1	≥2388	≥30	310-350	39-44	≤200	≥7.5
N45EH	1.33-1.38	13.3-13.8	≥995	≥12.5	≥2308	≥29	334-366	42-46	≤200	≥7.5
N28AH	1.04-1.12	10.4-11.2	≥772	≥9.7	≥2786	≥35	207-239	26-30	≤230	≥7.5
N30AH	1.08-1.15	10.8-11.5	≥812	≥10.2	≥2786	≥35	223-255	28-32	≤230	≥7.5
N33AH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥2786	≥35	247-279	31-35	≤230	≥7.5
N35AH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥2786	≥35	263-295	33-37	≤230	≥7.5
N38AH	1.23-1.27	12.3-12.7	≥923	≥11.6	≥2786	≥35	287-318	36-40	≤230	≥7.5
N40AH	1.26-1.31	12.6-13.1	≥939	≥11.8	≥2628	≥33	302-334	38-42	≤230	≥7.5
N42AH	1.29-1.35	12.9-13.5	≥955	≥12.0	≥2628	≥33	318-350	40-44	≤230	≥7.5
to be conRnued

Grade	Remanence Induction		Coercivity		Intrinsic Coercivity		๋Maximum Energy product		Working Temperature	Density
	Br		HcB		HcJ		(BH)max		Tw	ρ
	T	KGs	KA/m	KOe	KA/m	KOe	KJ/m³	MGOe	℃	g/cm3
Diffusion Process
G48SH	1.37-1.42	13.7-14.2	≥1011	≥13	≥1592	≥20	358-390	45-49	≤150	≥7.5
G50SH	1.40-1.45	14.0-14.5	≥1027	≥13.2	≥1592	≥20	374-406	47-51	≤150	≥7.5
G52SH	1.42-1.48	14.2-14.8	≥1067	≥13.4	≥1592	≥20	390-422	49-53	≤150	≥7.5
G55SH	1.46-1.51	14.6-15.1	≥1083	≥13.6	≥1592	≥20	406-438	51-55	≤150	≥7.5
G45UH	1.33-1.38	13.3-13.8	≥978	≥12.4	≥1990	≥25	334-366	42-46	≤180	≥7.5
G48UH	1.37-1.42	13.7-14.2	≥1027	≥12.9	≥1990	≥25	358-390	45-49	≤180	≥7.5
G50UH	1.40-1.45	14.0-14.5	≥1051	≥13.2	≥1990	≥25	374-406	47-51	≤180	≥7.5
G52UH	1.42-1.48	14.2-14.8	≥1067	≥13.4	≥1990	≥25	390-422	49-53	≤180	≥7.5
G54UH	1.46-1.51	14.6-15.1	≥1075	≥13.5	≥1990	≥25	406-438	51-55	≤180	≥7.5
G40EH	1.26-1.31	12.6-13.1	≥955	≥12.0	≥2388	≥30	302-334	38-42	≤200	≥7.5
G44EH	1.29-1.35	12.9-13.5	≥971	≥12.2	≥2388	≥30	318-350	40-44	≤200	≥7.5
G46EH	1.33-1.38	13.3-13.8	≥1011	≥12.7	≥2388	≥30	334-366	42-46	≤200	≥7.5
G48EH	1.37-1.42	13.7-14.2	≥1027	≥12.9	≥2388	≥30	358-390	45-49	≤200	≥7.5
G50EH	1.40-1.45	14.0-14.5	≥1051	≥13.2	≥2308	≥29	374-406	47-51	≤200	≥7.5

PRODUCT DESCRIPTION

Type: Ring Super Strong Motor Sensor Pure Permanent Magnet

Material: Mainly made of high-performance pure permanent magnets (such as NdFeB), which may include Ni, Zn, Cr, Gold, Silver and other coating options to enhance durability and corrosion resistance.
Shape: Ring design, suitable for a variety of motor structures and installation requirements.
Magnetic field strength: High magnetic field strength, the specific value may vary according to the product model and specifications, but usually belongs to the N35-N52 grade range.
Operating temperature: Widely adaptable, usually can work stably in the temperature range of 80-200℃.
Certification: Comply with international quality management system standards such as ISO-9001 to ensure reliable product quality.
Customization: Support customization according to customer needs, including adjustments in size, coating, magnetic field strength, etc.

Application scope and scenarios/fields
Motor control:
Widely used in various types of motors, as a key sensor component, used to accurately sense the motor operating status, such as speed, position, etc., to achieve precise control.
Especially suitable for high-performance motors, such as electric vehicle drive motors, industrial robot joint motors, etc., to provide stable and reliable power support.
Industrial Automation:
In automated production lines, it is used as a sensor element to monitor and control the motion state of various mechanical parts to ensure the stability and efficiency of the production process.
Applicable to automated assembly lines, material handling systems, robotic arms and other fields.
New Energy Field:
In new energy fields such as wind power generation and solar power generation, it is used as a key component of generators or drive motors to provide efficient and stable magnetic field support and improve energy conversion efficiency.
Aerospace:
Due to its high reliability and stability, it is also used in the aerospace field, such as satellite attitude control systems, aircraft engine control systems, etc.
Medical Equipment:
In high-end medical equipment, such as magnetic resonance imaging (MRI) equipment, medical robots, etc., it is used as a key sensor element to ensure the precise operation of the equipment and patient safety.
